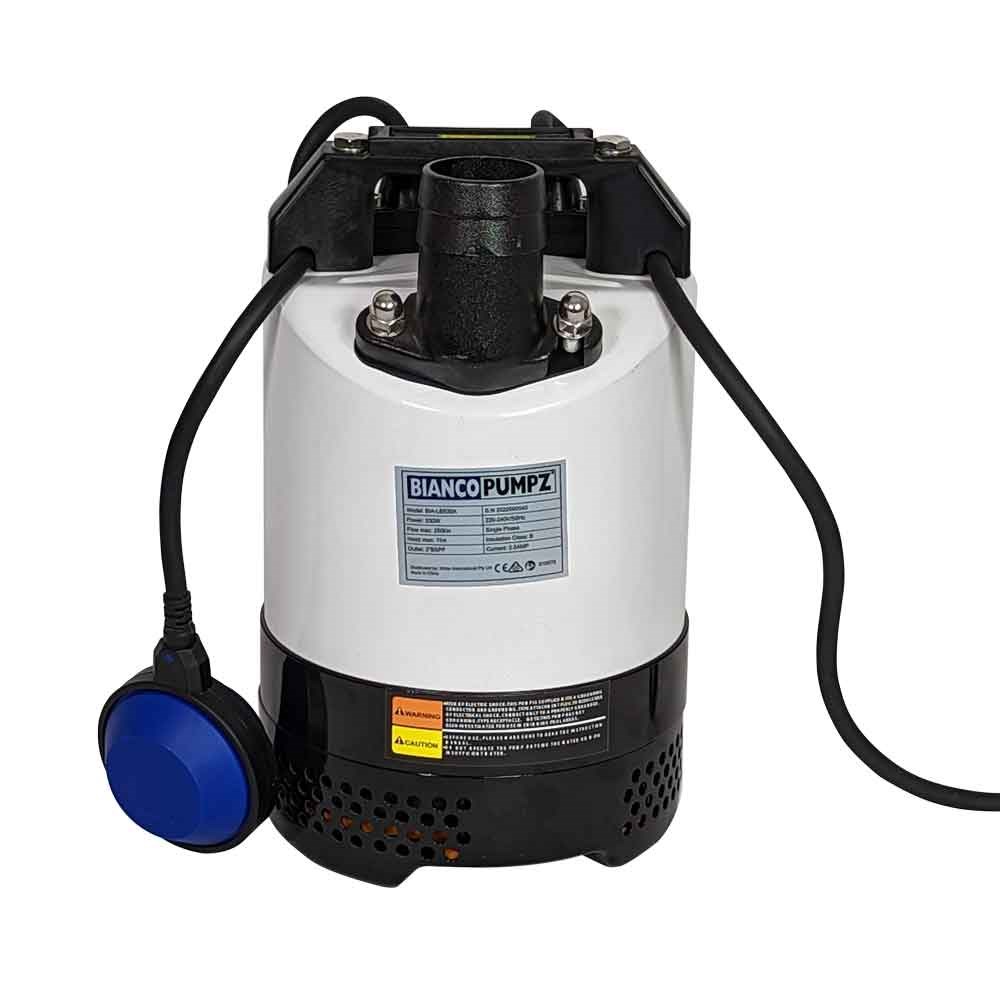

BIA-LB530A - Light Duty De-Watering Pump with Float - 250L/m 11.0M 0.53kW 240V

Code: 810678

Print
Product Code
BIA-LB530A
Technical Specifications
Brand Bianco Pumpz
Flow Rate (L/min) 250
Max Head (m) 11
Volts 240 V
Description

The Bianco LB530A is a light duty, occasional use pump with a flexible control float suitable for pumping mostly clean water with minimum soft solids or other contamination

The LB530A offers outstanding flow and head for its size and is ideal for de-watering tasks – emptying sumps and flooded areas or for transferring water from a tank, shallow well or pond.

Benefits:
  • Light weight - easy to lift and lower
  • Compact and able to be employed in sumps where space is limited

Features:
  • Automatic Operation
  • Quality pump materials and construction to ensure reliable operation
  • Industrial grade coating
  • 10m H07RN-F Neoprene power lead and float lead
  • Easy to install and use

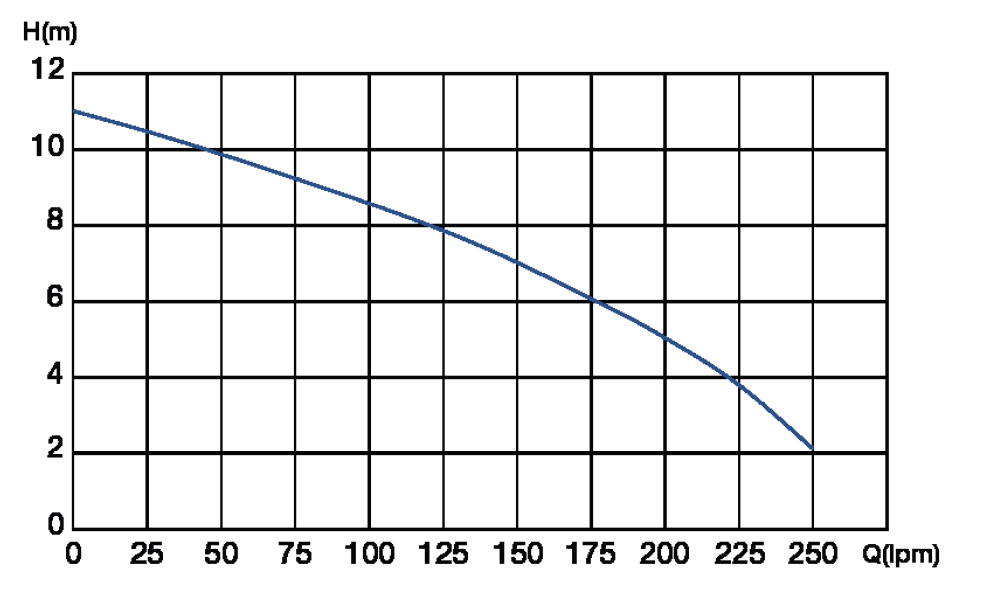

Hydraulic Performance

Technical Data
RATED POWER (W) 530W
MAX. FLOW [LPM] 250 lpm
MAX. HEAD [M] 11m
WORKING TEMPERATURE < 40°C
LIQUID TEMPERATURE 3°C - 40°C
MAX. IMMERSION DEPTH 10m
MAX. DIA. OF PARTICLE < 6mm
MOTOR DUTY S1 Continuous
MOTOR PROTECTION LEVEL Class B
MOTOR PROTECTION In-built auto re-setting thermal overload
CAPACITOR 10 uF +/-5% 450V
MOTOR SHAFT Stainless Steel 201
RATED VOLTAGE 220V-240V 50 Hz
RATED CURRENT 2.0A @ 230V
POWER CABLE TYPE 10m H07RN-F
PROTECTION CLASS IPX8
IMPELLERS Single Impeller
HYDRAULIC BODY Coated AISi12
INLET STRAINER Yes
OUTLET 2” DN hose tail
MECHANICAL SEALS Graphite/Ceramic
AUTOMATION FUNCTION Flexible Float Switch
NET WEIGHT (KG) Pump only 13.0kg
PACKAGE DIMENSION 220Lx220Wx340H (mm)
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.03
