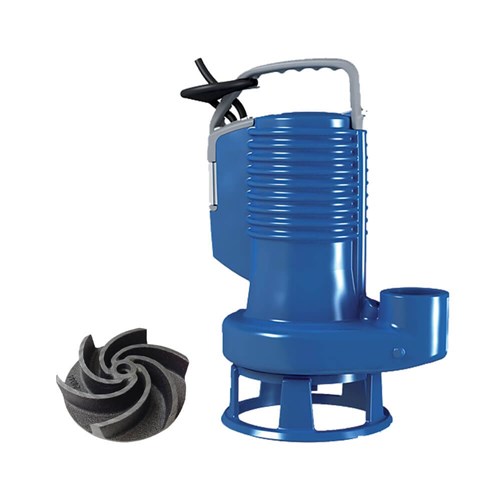

ZEN-DGBLUEP150/2/G50VTEX+E-IMP - 415V 3Ø Pump, no float, Small E-Impeller fitted

Code: 812192

Print
Product Code
ZEN-DGBLUEP150/2/G50VTEX+E-IMP
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.23
Suitable For Dirty Water
Approval IECex Zone 2 Approved
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 600
Hp 1.5
Kilo Watts 1.1
Head Range Category a. 0 - 39 m
Max Head (m) 12.3
Port Size Outlet 2" BSPF outlet
Particle Size 50 mm
Volts 415
Warranty (months) 24
Watts 1100
Description
ZENIT DG Blue Professional Series

Suitable for heavy-duty applications with soiled biological wastewaters, sewage, rainwater and seepage. This electric pump is intended for both domestic and professional use.

Normal Operating Performance:* 1.1kW, 1.5hp, 415V without float switch, max hd 12.3m, max flow 600L/m, 2" BSPF outlet. Particle size 50mm.
3 phase pumps require contactor and overload.

ZENIT E-Impeller, small to suit ZENIT DG Blue P 150 Series. Maximum clearance, maximum pump torque

Warranty

2 Year Zenit Warranty

ZENIT DG BLUE PROFESSIONAL SERIES E-IMPELLER

A specifically modified ZENIT vortex impeller matched to use with either the ZENIT DG Blue Professional Series 150 (1.1kW)  pump. Particularly suited to raw agricultural effluent or green water containing fibrous material such as undigested grasses. Developed locally for New Zealand conditions. Impeller design assists in reducing build-up of fibres around drive shaft and allows for the easy passage of fibre clumps and squishy solids through the pump volute.

Notes:

  1. *With E-Impeller fitted pump performance is approximately 75% of normal operating performance.
  2. Pump and Impeller combination should not be operated with less than 0.3 bar/ 4.3 psi dynamic head. Restrict the discharge if necessary to maintain minimum head.
