RL20RB - Coast LED Headlamp with Tri & Variable light control | 179m Beam | 1000 Lumen | Max 33hr

Code: 811809

Print
Product Code
COARL20RB
Find Your Nearest Store
Technical Specifications
Brand Coast
Product Type Headlamp
Rechargeable Yes
Description

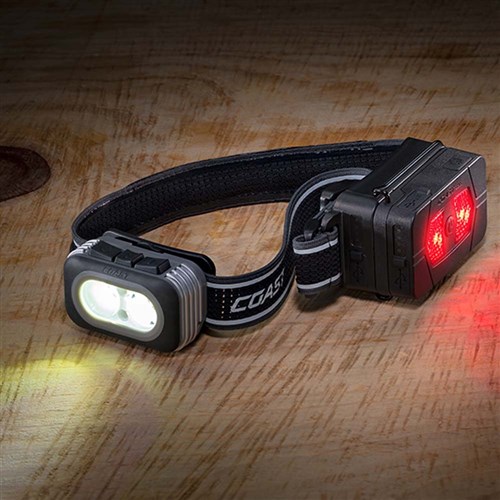

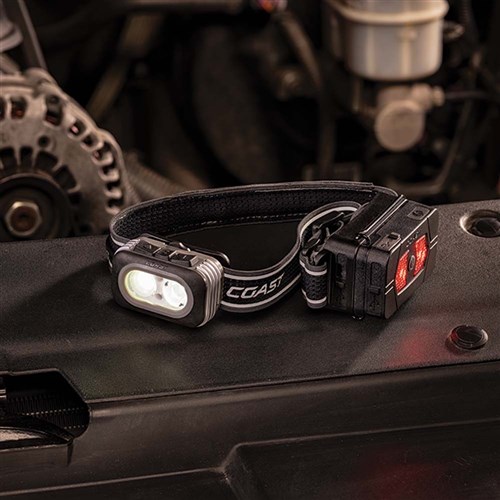

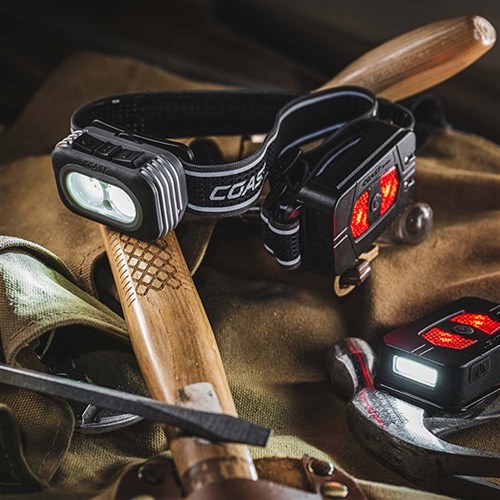

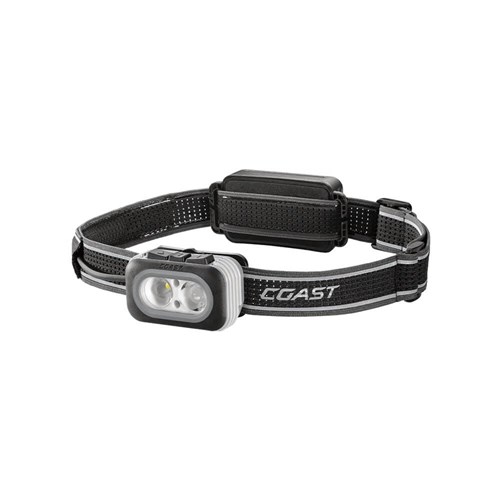

Adjust your light to perfection with the RL20RB rechargeable headlamp. Featuring Variable Light Control technology, you can easily brighten or dim the light to suit any situation. It combines two independently controlled beams—Ultra View Flood Beam and BULLS-EYE™ Spot Beam—when combined delivering up to 1000 lumens, perfect for outdoor adventures, workshops, and on-site tasks. Independent controls on top offer additional red and green LED options for versatile lighting. The integrated COAST ZITHION™ rechargeable battery pack at the back includes a rear-facing safety signal in solid or flashing red with its own off/on switch. The rechargeable Plus power system comes with a booster battery pack that snaps into position on top of the integrated battery—allowing twice the run time (up to 33 hours) for long shifts or convenience in off-grid locations. For added convenience, the booster battery also has its own white LED to make it a light-duty grab-and-go flashlight. A battery life indicator ensures you know when to recharge via USB-C. Built from top-grade materials, the RL20RB is IP54 water and dust-resistant and comes with a lifetime warranty.


SPECIFICATIONS
BATTERY TYPE Built-In Rechargeable
BEAM DISTANCE (HIGH) BEAM DISTANCE (COMBINED) 179m
BEAM DISTANCE (FLOOD HIGH) 73m
BEAM DISTANCE (SPOT) 187m
BEAM DISTANCE (LOW) BEAM DISTANCE (COMBINED LOW) 49m
BEAM DISTANCE (FLOOD LOW) 17m
BEAM DISTANCE (SPOT LOW) 46m
INCLUDED USB-C Charging Cable, ZX20B Power Pack
LIGHT OUTPUT (HIGH) LIGHT OUTPUT (COMBINED) 1000 Lumens
LIGHT OUTPUT (FLOOD HIGH) 620 Lumens
LIGHT OUTPUT (SPOT HIGH) 690 Lumens
LIGHT OUTPUT (LOW) LIGHT OUTPUT (COMBINED) 84 Lumens
LIGHT OUTPUT (FLOOD LOW) 40 Lumens
LIGHT OUTPUT (SPOT LOW) 45 Lumens
RUNTIME (HIGH) RUNTIME (COMBINED HIGH) 4h
RUNTIME (FLOOD HIGH) 9h
RUNTIME (SPOT HIGH) 8h 30m
RUNTIME (LOW) RUNTIME (COMBINED LOW) 18h
RUNTIME (FLOOD LOW) 34h
RUNTIME (SPOT LOW) 33h
Features
BATTERY CHARGES INSIDE LIGHT

COAST ZITHION™ non-ported rechargeable batteries are built to charge from within your COAST light using a COAST charging system.

BATTERY CHARGING LEVEL INDICATOR

Check the status of your batteries charge level with our built-in charge level indicator. (Solid red) when charging, (solid green) when fully charged.


BUILT-IN USB-C PORT

With a built-in USB-C port, your battery can be charged using a USB-C cord. Some COAST models can be charged both inside or outside the light.

VARIABLE LIGHT CONTROL TECHNOLOGY

Easily adjust headlamp light output. COAST Variable Light Control Technology provides three ways to precisely regulate beam intensity.


TRI-COLOR BEAM

Versatility to meet broad needs. The Tri-Color Beam combines white, red, and green beams into a single device. High-powered LEDs deliver all-white light for general use, red light for anti-glare and signaling, and green light for tracking.

HINGED BEAM

Up, down, or straight ahead. All COAST headlamps feature a hinged, tilting head so that you can adjust the light’s direction and see right where you’re looking.


DUST PROOF

Take on any dirty work environment with this IP54 rated dust proof light.

WATER RESISTANCE

Don’t worry about the weather. COAST lights that have passed the IP54-level resistance tests are splash-resistant and built with durable materials that stand up to nature.


HARDHAT COMPATIBLE

Rugged enough for the outside of the hardhat. COAST headlamps with Hardhat Compatible design include clips for attaching the light to the hat.

LIGHT CONTROL WHEEL

Dial in your light output. COAST’s patent-pending variable light-control system puts you in control of your headlamp’s beam intensity, with a rotating sensor knob that detects a magnetic field inside the headlamp bezel.


Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
