- Energy Saving - high performance with low energy consumption
- Noiseless (60 DBA) - Silent running
- Reliability - Corrosion resistant materials for a long life even at extreme conditions
- Easy to clean - easy-to-open transparent cover for quick cleaning of the filter

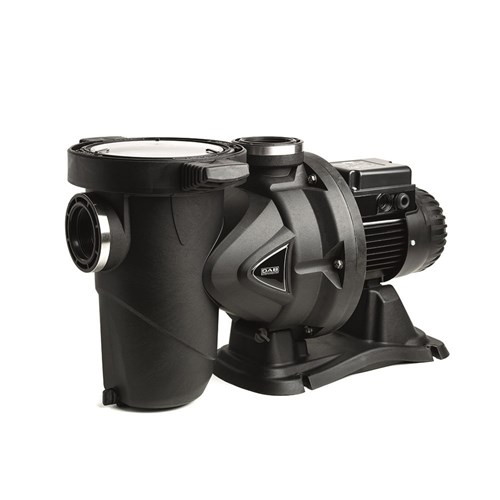

High performance self-priming centrifugal pump with built-in pre-filter for the circulation of swimming pool water (including salt water) for residential and domestic environments. Quiet and reliable.
- Suitable for Salt Water swimming pools
- High efficiency hydraulics
- Highly reliable and durable components
- Small size for easy installation
Product Brochure
Brochure
DESIGN
This innovative solution combines aesthetics with sturdy materials highly resistant to corrosion and oxidation.
HYDRAULIC COMPONENTS
All components in contact with the liquid are made in polypropylene or noryl with glass fiber High efficiency Impeller with special design to cover and protect motor shaft against corrosion (motor is completely insulate)
MOTOR
All metallic components are with surface treatment Suitable for working at high temperature environment (up to 50°C) With exhaust condensate holes Capacitor is internal in the terminal board box Water proof bearings
TERMINAL BOARD BOX
Easy and fast line connection, It is totally closed against electrical motor to avoid any accidentally solid bodies entry
LARGE PREFILTER
It has a large canister, up to 6 liters Motor (suitable up to 60°) a trasparent lid that can be removed without tools, and an internal filter easy to take out and clean.
ANTI-VIBRATION FEET
The support base guarantees stability and is equipped with rubber feet that reduce vibrations.
QUICK AND EASY CONNECTION
In & Out connection female, threaded 2” (unions included).
Selection Guide
| Pool Dimensions |
Volume of Water |
Flow |
Model |
| RESIDENTIAL SWIMMING POOL |
| 8m x 4m |
35,000L to 50,000L |
150 L/min |
|
| 8m x 4m to 10m x 5m |
50,000L to 70,000L |
200 L/min |
|
| 10m x 5m |
70,000L to 90,000L |
250 L/min |
|
| 11m x 6m to 12m x 6m |
90,000L to 110,000L |
300 L/min |
|
| POOL WITH IN-FLOOR CLEANING AND POOL/SPA JETS |
| 8m x 4m |
35,000 to 50,000 |
150 L/min |
|
| 8m x 4m to 10m x 5m |
50,000 to 70,000 |
200 L/min |
|
| 10m x 5m |
70,000 to 90,000 |
250 L/min |
|
| 11m x 6m to 12m x 6m |
90,000 to 110,000 |
300 L/min |
|
| PUBLIC SWIMMING POOL |
| 8m x 4m |
35,000L to 50,000L |
233 L/min |
|
| 8m x 4m to 10m x 5m |
50,000L to 70,000L |
400 L/min |
|
| 10m x 5m to 12m x 5m |
70,000L to 90,000L |
500 L/min |
|
| 11m x 6m to 12m x 6m |
90,000L to 110,000L |
667 L/min |
|
*Times for complete recirculation of water within 6 hours for private pool and 2/3 hours for public pool
