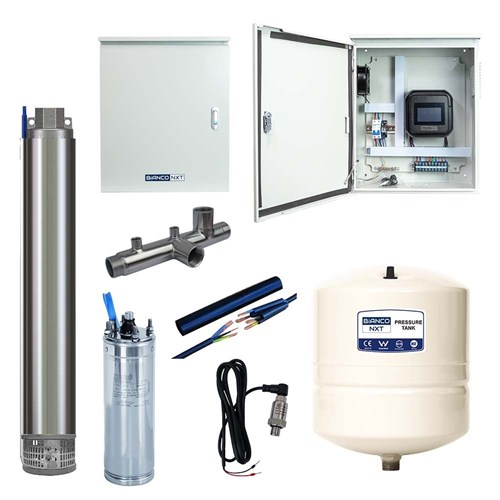

The iSUB22 device supplied with BIA-ISUBS43-25M is an innovative 240V single phase input built-in variable speed control system housed in a weather proof fan ventilated enclosure and incorporates a manifold with pressure gauge and pressure transducer for easy installation. Also included is a Bianco 18 litre pressure tank and DAB S4 series borehole pump supplied with a 1.5 kW 240V three phase motor.
- Greater comfort due to constant pressure
- Optimises pump flow while minimising energy consumption
- Elimination of overpressures
- Greater life of electric pump
- Easy installation
- Dry run protection
- Minimum speed selection
- Various supply fault alarms including high pressure, low pressure, low level, transducer error
- As many as 22 types of fault protection including over and under voltage, over current, etc.
DAB Pump Features
- 4” Bore Hole Submersible Pumps
- Solar Powered with 240V back up possible
- Brushless DC motor with MPPT for efficient operation
- Technopolymer impellers and diffusers for resistance to wear and corrosion
- New impeller design has higher resistance to abrasion
- Micro Cast stainless steel support and valve body for high strength
- Large range to suit most applications
- Floating impeller stack for easier starts in abrasive conditions
- Posidrive pump shaft improves impeller life in adverse conditions
Pressure Tank Description
Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.
- Nominal volume: 18L
- Nominal Draw-off: 6L
- Continuous max. temp 90°C
- Continuous max. pressure: 10 Bar (145PSI)
- Pre-charge: 4 Bar (58PSI)
- Diameter: 279 mm
- Height: 375mm
- Net Weight: 3.4Kg
- System Connection: GI
- Colour: Almond
