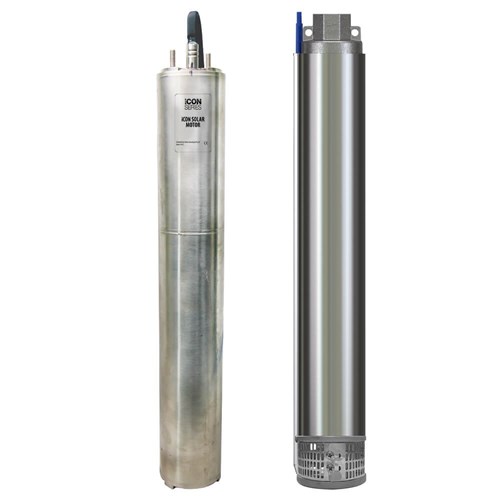

DAB-S4-8/6SOL - Solar Borehole Pump | max head 35m, max flow 188L/m, 2” BSPF

Code: 809440

Print
Product Code
DAB S4 8/6SOL
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 3.4
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 188
Kilo Watts 1.1
Head Range Category d. 100+ m
Max Head (m) 35
Port Size Outlet 2" BSPF outlet
Volts 240
Description
Stainless Steel Solar Pump

Max head 35m, max flow 188L/m, 2” BSPF


Features
  • 4” Bore Hole Submersible Pumps
  • Solar Powered with 240V back up possible
  • Brushless DC motor with MPPT for efficient operation
  • Technopolymer impellers and diffusers for resistance to wear and corrosion
  • New impeller design has higher resistance to abrasion
  • Micro Cast stainless steel support and valve body for high strength
  • Large range to suit most applications
  • Floating impeller stack for easier starts in abrasive conditions
  • Posidrive pump shaft improves impeller life in adverse conditions
  • Maximum quantity of sand = 150 gm/m3

Warranty

2 Year Pump Parts and Labour Warranty
