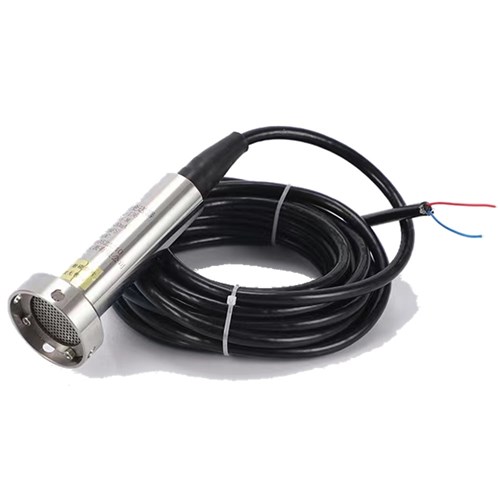

The Bia-Transducer-2M is a quality 2 wire 4-20mA level transducer to provide liquid level values to pump controllers and liquid measurement devices.
Application: Liquid level measurement of clean or soiled water
This level sensor outputs a relative water level value. The instrument makes no compensation for changes in atmospheric pressure.
Where there is likely to be sediment in the bottom of the tank, install 5cm above the base to prevent silt affecting the operation of the sensor.
This sensor is a low current device. Soldered cable joins and shielded (earthed) cable extensions are recommended
Suitable for use with nXt Protect, SPC and DPC pump controllers
| SPECIFICATIONS |
| POWER SUPPLY VOLTAGE |
12 – 36V DC |
| OUTPUT SIGNAL |
4-20mA |
| MEASUREMENT RANGE |
2 meters |
| MAXIMUM POWER |
≤0.5 W |
| ACCURACY LEVEL |
0.5% Full Scale |
| RESPONSE FREQUENCY) |
<100Hz |
| PERFORMANCE STABILITY |
+/- 0.1% FS/Year |
| TEMPERATURE DRIFT |
+/-0.02% FS/Deg C |
| PROTECTION LEVEL |
IP68 |
| OUTER SHELL |
304 SS |
| DIAPHRAGM |
316 SS |
| pH TOLERANCE |
pH 4 to 9 |
| WORKING TEMP RANGE |
-20 to 60 deg C |
