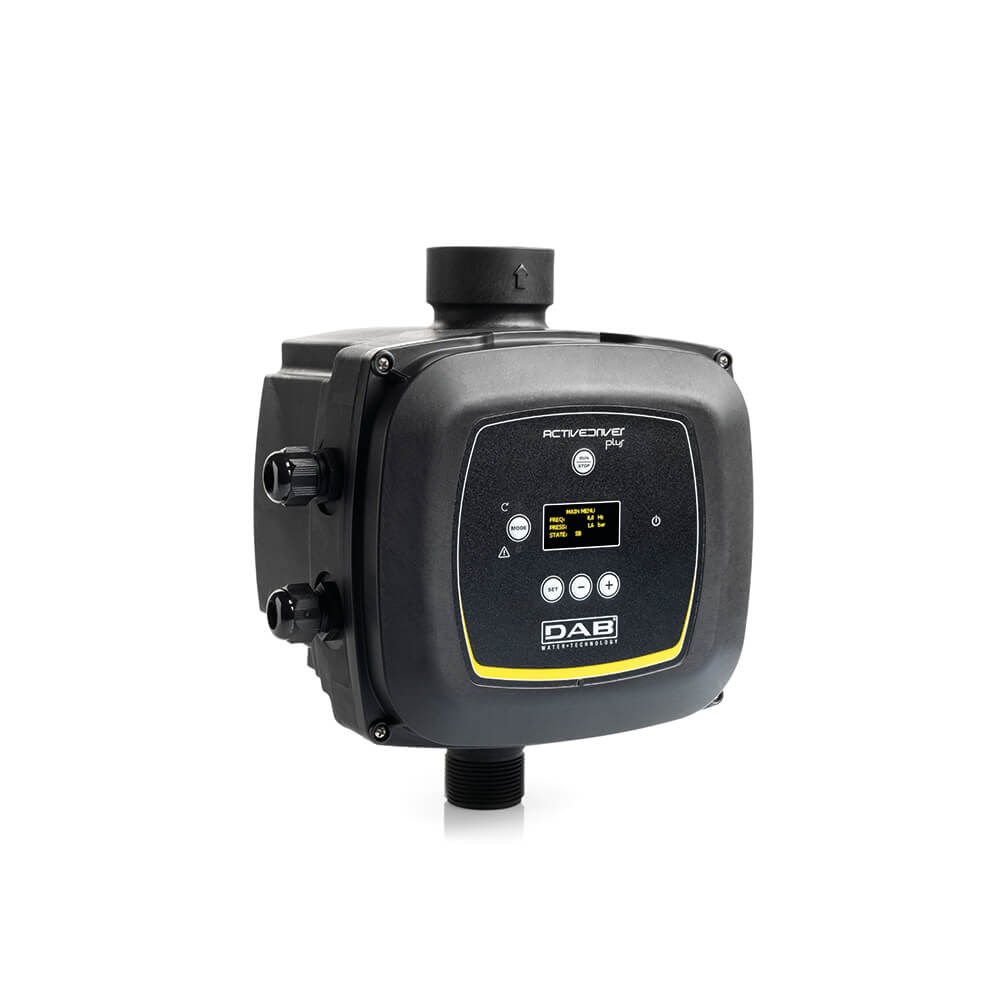

DAB-ACTIVERDRIVERPLUSMM1.8 - DAB INLINE VARIABLE FREQUENCY DRIVE PUMP CONTROLLERS 1.8KW 14A 1-9 BAR

Code: 805299

Print
Product Code
DAB ACTIVEDRIVERPLUSMM1.8
Product Documents
Technical Specifications
Brand DAB Pumps
Description

The Active Driver Plus device is an innovative variable speed electric pump integrated control system, capable of maintaining a constant pressure in relation to the varied flow rates. The

240V 1PH in, 240V 1PH out, 1.8 Kw, 14 A, 1-9 bar set point range, communication.

Ports 1-1/4” BSPM In, 1-1/2” BSPF out, max flow 300 L/m

2 Year DAB Pumps Warranty

Features

The Active Driver Plus device is an innovative variable speed electric pump integrated control system, capable of maintaining a constant pressure in relation to the varied flow rates. The set pressure can be adjusted and the various settings and related error warnings can be viewed thanks to a simple and immediate user interface. Active Driver Plus comprises of: an inverter, pressure sensor and a flow sensor.

Advantages of using the Active Driver Plus:

  • Greater comfort, greater energy saving
  • Greater noise reduction, reduced dimensions
  • Eliminates overpressures, increased lifespan of the electric pump
  • Easy installation, capable of controlling many different types of electric pumps. Active Driver Plus is equipped with a malfunctions protection system. In the event that a malfunction is verified, it is signalled on the display and, depending on the type of error, the electric pump can turn off.
  • Protection against dry running, amperometric protection
  • Communication between devices
  • Electric pump overheating protection against abnormal power supply voltages.

Applications
ACTIVE DRIVER PLUS inverters are used for the control of hydraulic pumps. Their obvious fields of application are domestic and industrial constant pressure pumping systems. ACTIVE DRIVER PLUS inverters are also very suited to the agricultural sector, where they can be used in conjunction with 4" submerged pumps, to provide a more efficient and economic irrigation system
