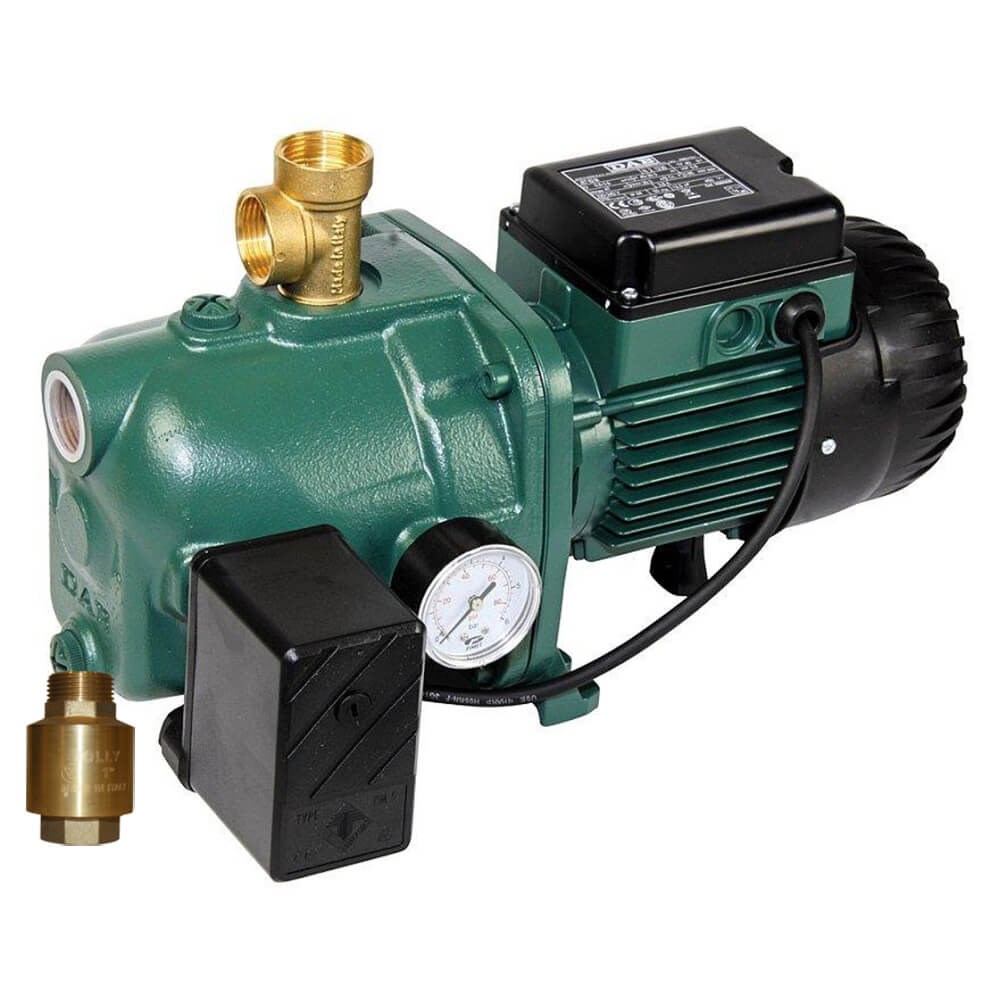

DAB-102MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 53.8M 0.75KW 240V

Code: 701376

Print
Product Code
DAB-102MP
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Bar 5.38
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60
Hp 1
kPa 545
Kilo Watts 0.75
Head Range Category b. 40 - 59 m
Max Head (m) 53.8
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6
Volts 240
Warranty (months) 24
Watts 750
Description
0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV

Features
Self Priming Cast Iron Jet Pressure Pumps

2 Year DAB Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702087
DABSR00010537
702135
DABSR00004811
702158
DABSR00005107
702121
DABSR00004650
702190
DABSR00005153
702084
DABSR00004017
702206
DABSR00005193
702085
DABSR00004018
702076
DABSR00004000
702203
DABSR00005187
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
