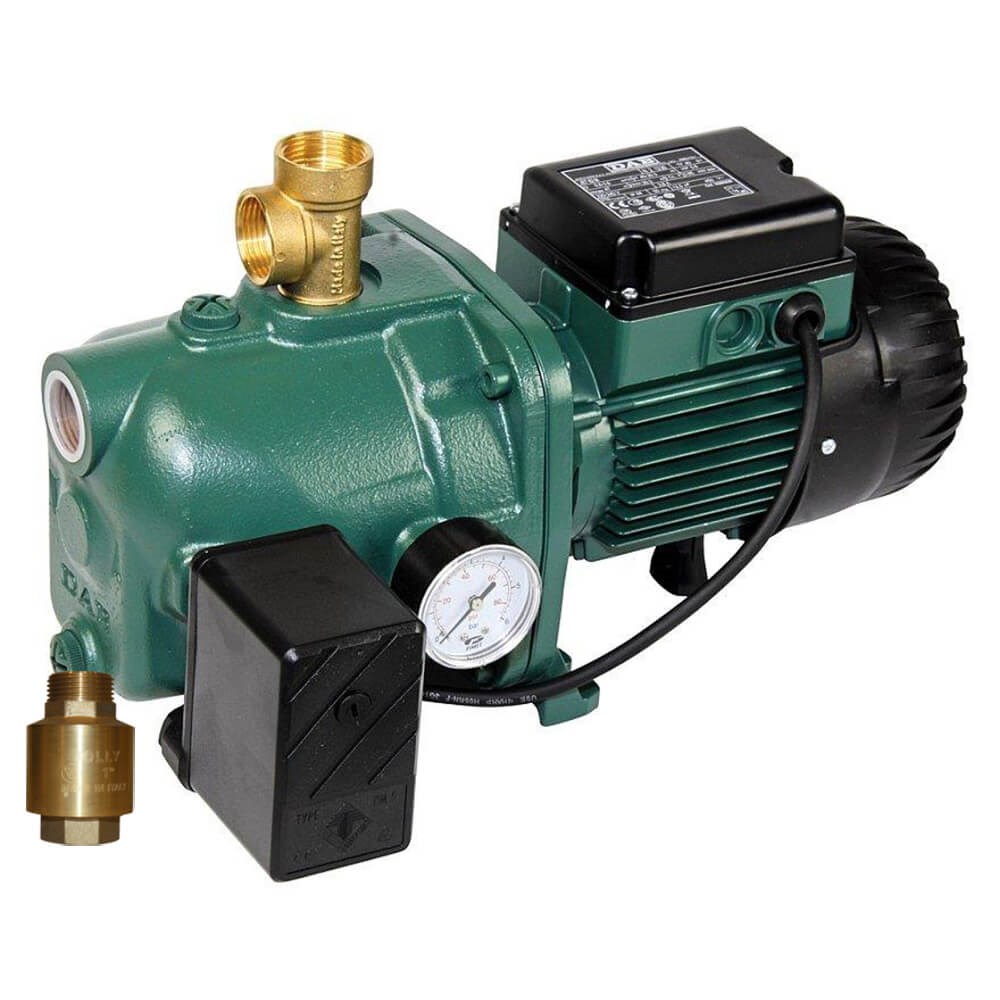

DAB-132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V

Code: 701384

Print
Product Code
DAB-132MP
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Bar 4.8
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
kPa 486
Kilo Watts 1
Head Range Category b. 40 - 59 m
Max Head (m) 48
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 8
Volts 240
Warranty (months) 24
Watts 1000
Description
84 1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m, 8 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.
Features
Self Priming Cast Iron Jet Pressure Pumps

2 Year DAB Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702194
DABSR00005164
ASSEMBLY ACTIVEJI132M-N.6
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702181
DABSR00010362 25UF PRONG
DAB CAPACITOR 25 uF
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702192
DABSR00005158
IMPELLER ACTIVEJI132M-N.6
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702182
DABSR00005141
MOTOR ACTIVEEI40/50M-N.9
702166
DABSR00005115
MOTOR COVER ACTIVEEI40/50M-N.9
702205
DABSR00005192
MOTOR SHAFT
702206
DABSR00005193
NUTS AND BOLTS JET102M-N.3
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702076
DABSR00004000
PUMP BODY ACTIVEJ82M-N.6
702119
DABSR00009575
SEAL ACTIVEJ82M
702203
DABSR00005187
SUPPORT JET102M-N.3
