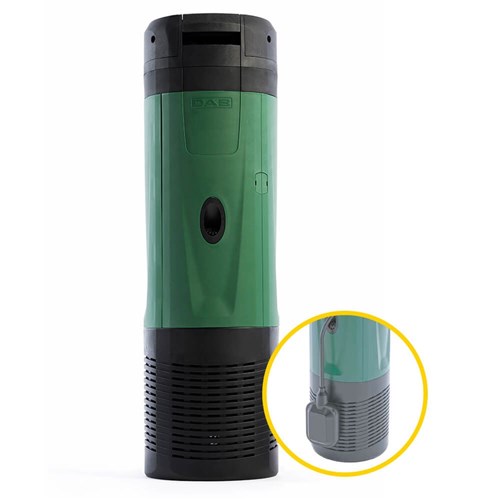

DAB-DTRON2 45/90A - 7" Electronic Multistage Submersible Pump with Float 105L/Min 45m Head 1.0KW

Code: 808869

Print
Product Code
DAB DTRON 2 45/90A
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 4.4
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 105
Kilo Watts 0.6
Head Range Category b. 40 - 59 m
Max Head (m) 45
Port Size Outlet 1 1/4" BSPF outlet
Volts 240
Description

  • 7" Electronic Multi Stage Pump
  • Technology Advanced & Easy to Use
  • The External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
  • The Bleed Valve allows immediate priming upon initial installation
  • The modular components of the pump make it easier to perform maintenance
  • The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
  • The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
  • Large range to suit most applications
  • Ergonomic Carry Handle for easy transportation and installation
  • Resistance to high and low temperatures
  • Certified for Drinking Water
Warranty
2 Year Pump Parts and Labour Warranty
Features
The DTron 2 and DTron 3 were born out of a desire to create a range of pumps that could be “easy” but also extremely efficient.
Technologically advanced and easy to use. Reliable and high performing in varied applications, supported by a set of smart accessories.

MAXIMUM FLOW RATE Up to 105 l/min
MAXIMUM HEAD Up to 45m
P1 Up to 1kW
P2 NOMINAL P2 NOMINAL
MAXIMUM IMMERSION DEPTH 12m
MAX AMBIENT AND LIQUID TEMPERATURE: +50°C
FACTORY CUT-IN: 2.4 bar (±0.2)
DELIVERY FLANGE OR THREAD: Threaded from 1” ¼
PUMP MAXIMUM DIAMETER: 185 mm
DIMENSIONS: DTron 2: 611 x 185mm
DTron 3: 651 x 185mm
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
