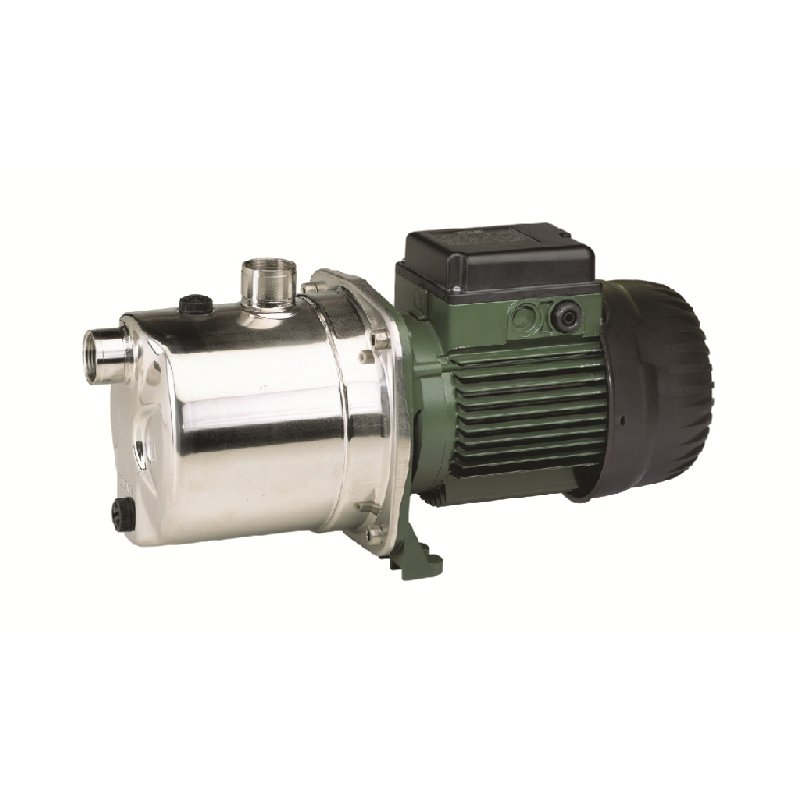

DAB-JINOX102M PUMP SURFACE MOUNTED JET 60L/MIN 53.8M 0.75KW 240V

Code: 701580

Print
Product Code
DAB-JINOX102M
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Bar 5.38
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60
Hp 1
kPa 545
Kilo Watts 0.75
Head Range Category b. 40 - 59 m
Max Head (m) 53.8
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 750
Description
0 0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m Ports 1” BSPF In, 1” BSPF Out
Features
Self Priming Stainless Steel Jet Pumps

Suitable for water supply in domestic installations, small-scale agriculture and gardening.
2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702087
DABSR00010537
702135
DABSR00004811
702189
DABSR00005152
702158
DABSR00005107
702121
DABSR00004650
702190
DABSR00005153
702084
DABSR00004017
702188
DABSR00005151
702085
DABSR00004018
702183
DABSR00005144
702187
DABSR00005150
