BIA-iJINOX132BOX - DAB ELITE Pump Box Package + JETCOM132

Code: 804667

Print
Product Code
BIA-iJETCOM132BOX
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pump & Box Package
Bar 4.8
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Rate (L/min) 80
Hp 1.36
kPa 486
Kilo Watts 1
Max Head (m) 48
Port Size Inlet 1" BSPF inlet
Powered Electric
Taps 8
Volts 240
Watts 1000
Description

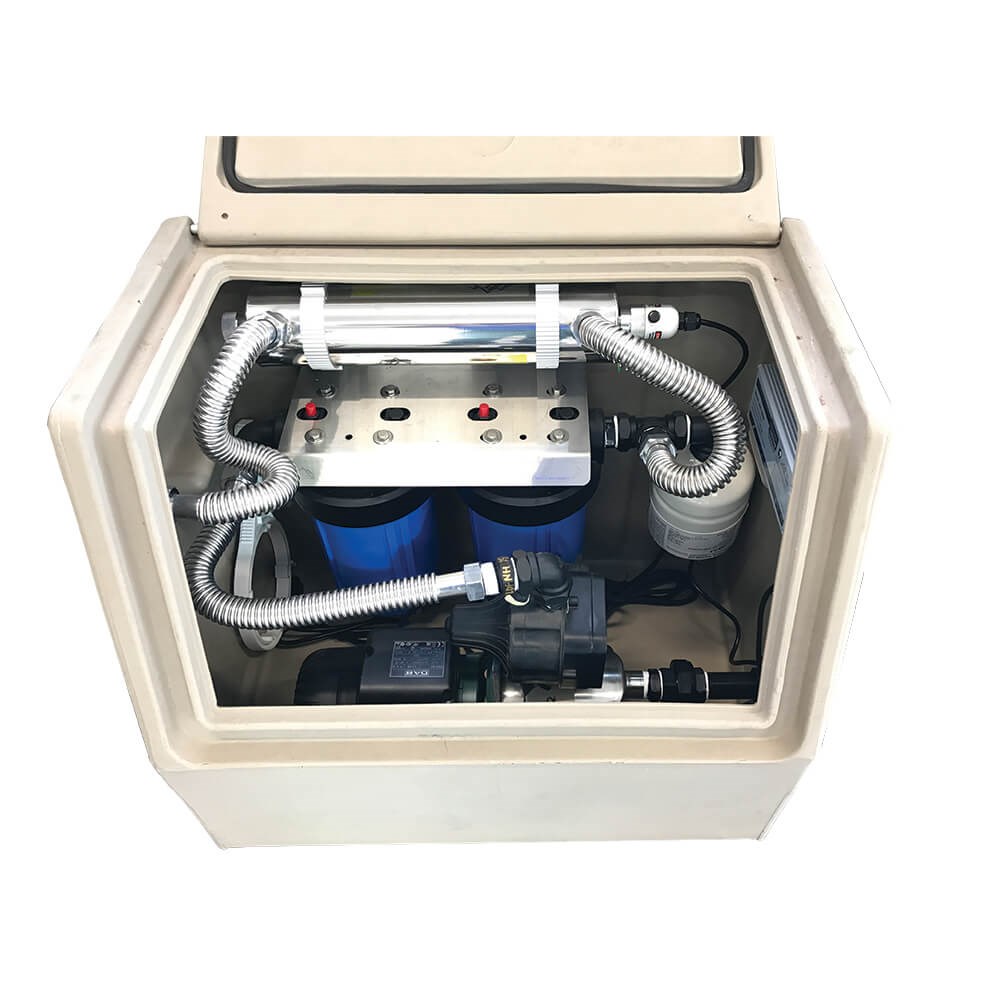

Elite All-in-one Pump Box - DAB-JINOX132, 10" Jumbo Filters, UV Lamp, Pump Box
Features
A high-performance, ready to install pump and water treatment package.
Whether you live in a small or medium home we can tailor make a package to suit. This neatly designed package comes complete and ready to use with only minor plumbing connections required.
  • Weather resistant.
  • Lockable for security.
  • Long service life with low maintenance.
  • Automatic pressure control.

Key features:

  • Includes DAB-JINOX132MPCX Pump.
  • Stainless steel pump body.
  • Simple plug and play installation.
  • For medium and small homes – e.g. 3-4 bedrooms, 1-2 bathrooms.
  • Includes 2L pressure tank.
  • Max flow 80 L/min (8 taps).
  • Max pressure 4.8 bar (69 psi).
  • 25 mm BSP inlet and outlet.
  • UV system
  • 1 x 10” 20 micron filtration.
  • 1 x 10” 1 micron filtration.
  • Self priming impeller system
  • Suction lift of up to 8 meters - suits most underground tanks.
  • Fan cooled motor.
  • Automatic operation with electronic Pressure Controller.
  • 240V 1.0kW Power
