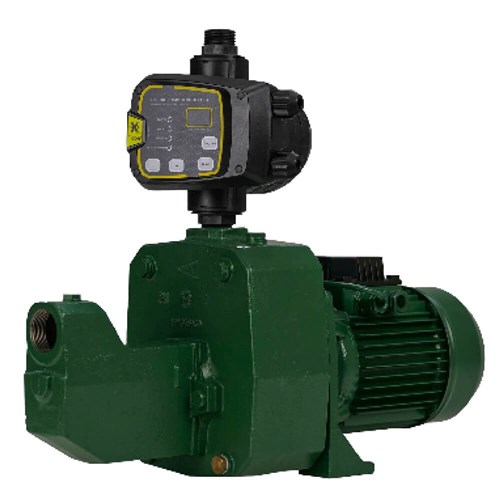

DAB-251NXTP - Cast Iron Jet Pump with nXt PRO Pump Controller 62m 1.85kW 240V

Code: 808425

Print
Product Code
DAB 251NXTP
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Bar 6.1
Suitable For Clean Water
Amps 10
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120
Float No
Hp 2.5
kPa 607
Kilo Watts 1.85
Max Flow (L/min) 120
Head Range Category c. 60 - 99 m
Max Head (m) 62
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 12
Volts 240
Warranty (months) 24
Watts 1850
Description

DAB iCON Powered Pressure System

Ideal for medium to large homes. Suitable for high density urban applications.

1.85kW, 2.5hp, 240V, max hd 62m, max flow 120L/m, 12 taps. Ports 1-1/4” BSPF In, 1” BSPM Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.


Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Modes

Two operational modes:

  • Mode One - Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two - Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.


Controller Flow Curve


nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1"
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
