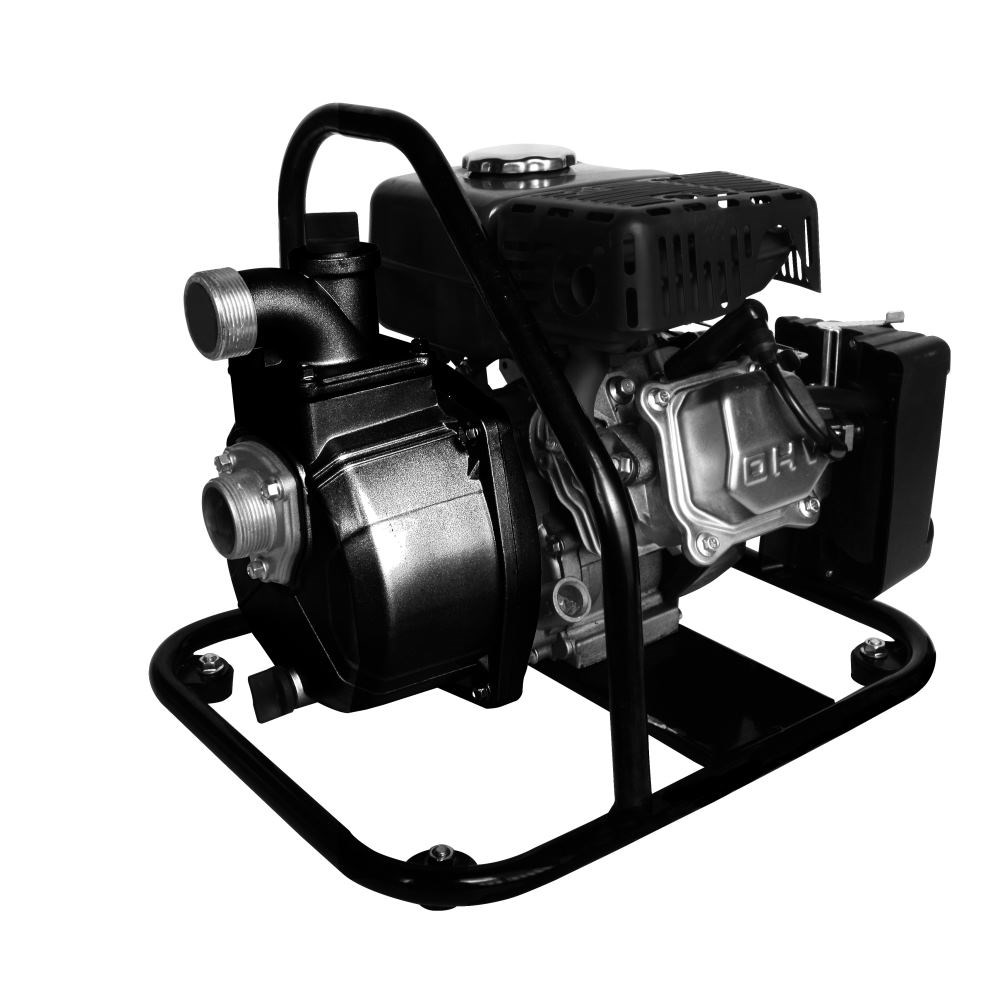

BIA-WP15A - Bianco Vulcan 3.0HP Engine Driven Compact Portable Pump

Code: 804449

Print
Product Code
BIA-WP15A
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 3
Max Flow (L/min) 300
Max Head (m) 25
Port Size Outlet 1-1/2" BSPM
Warranty (months) 24
Description

3.0HP Compact Portable Pumps

  • Custom Built Frame
  • Spark Arrester
  • Full Serviceability
  • Single cylinder, 4 stroke, forced air cooled, OHV engine
  • Heads to 25 metres
  • Flows to 300 l/min
  • Suction to 8m
  • 1 x 1.5” BSP male discharge ports
  • 1 x 1.5” BSP male suction port

Applications

  • Dust Suppression
  • Water Transfer
  • Tank Filling
  • De-watering
Roll Frame
Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing.
Rubber Mounting Feet
Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation.

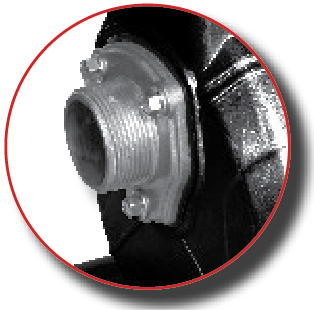

Discharge Port
1 x 1½” BSP male discharge port
Suction Port
1 x 1½” BSP male suction port

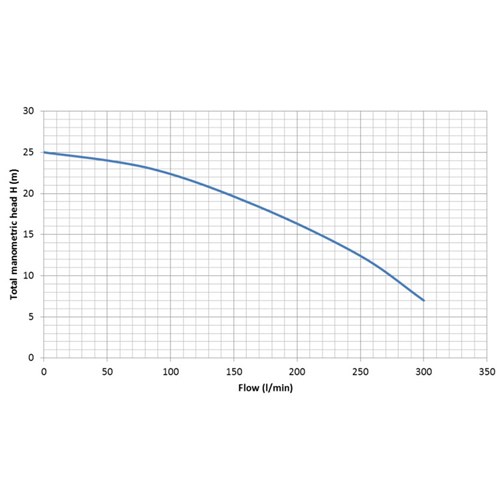

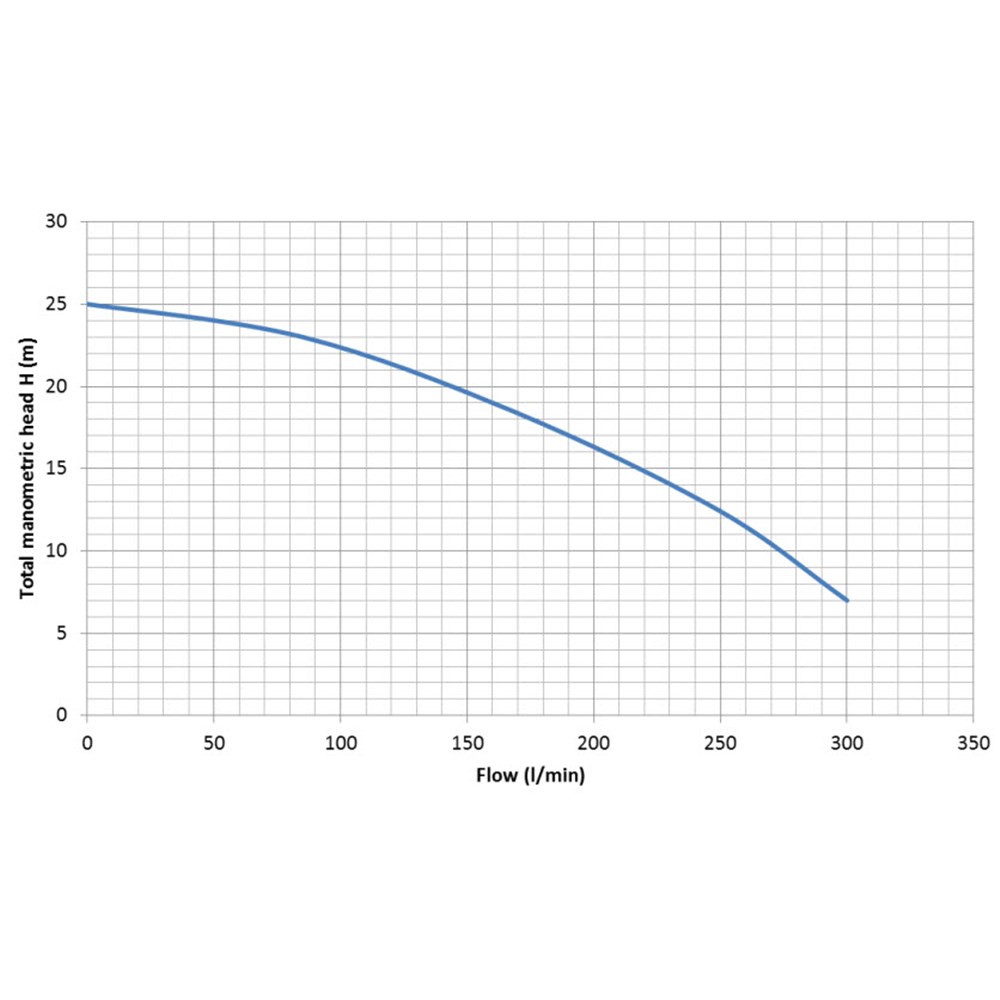

Performance

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Similar Products

Spare Parts
Code
Part Number
Description
804578
BIA-WP10-21
BIA WP10 21 PLUG BIA-WP10-21
804602
BIA-WP15A-10
BIA WP15A 10 IMPELLER BIA-WP15A-10
804603
BIA-WP15A-11
BIA WP15A 11 DIFFUSER BIA-WP15A-11
804620
BIA-WP15A-7
BIA WP15A 7 O RING 194X3.55 BIA-WP15A-7
804621
BIA-WP15A-8
BIA WP15A 8 MECHANICAL SEAL BIA-WP15A-8
