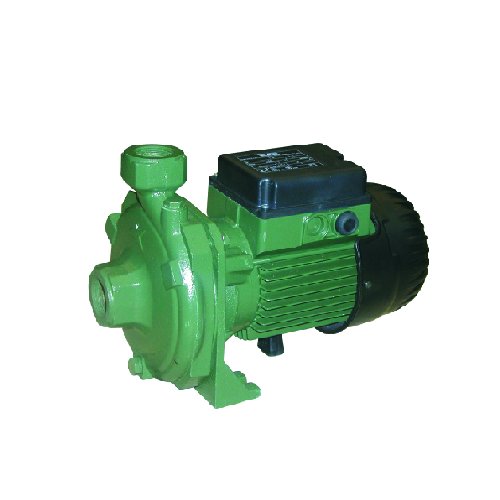

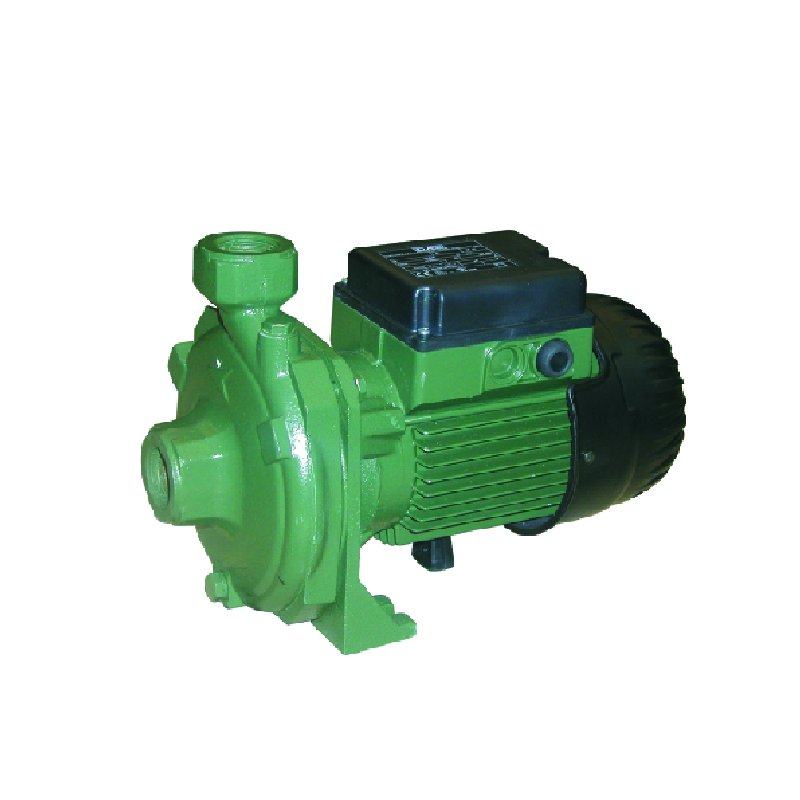

DAB-K12-200M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 280L/MIN 18M 0.75KW 240V

Code: 701613

Print
Product Code
PUMP, CENTRIFUGAL K12-200M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 1.84
Suitable For Water Transfer
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 280
Hp 1
kPa 186
Kilo Watts 0.75
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 18.4
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/2" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 750
Description
Single Impeller Centrifugal Pump

Ideal for rivers, tanks, dams and water transfer applications.

0.75kW, 1.0hp, 240V, 2 pole, max hd 18.4m, max flow 280L/m, Ports 1 1/2" BSPF In, 1 1/2" BSPF Out

Warranty
2 Year Dab Pumps Warranty
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702181
DABSR00010362 25UF PRONG
DAB CAPACITOR 25 uF
804949
DABS R00005496
DABSR00005496 K12/20 O RING-GASKET DABS R00005496
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702219
DABSR00005213
LOAD PLUG DP100M-N.3
