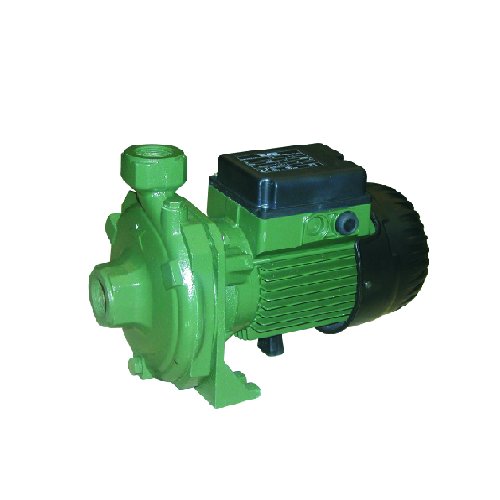

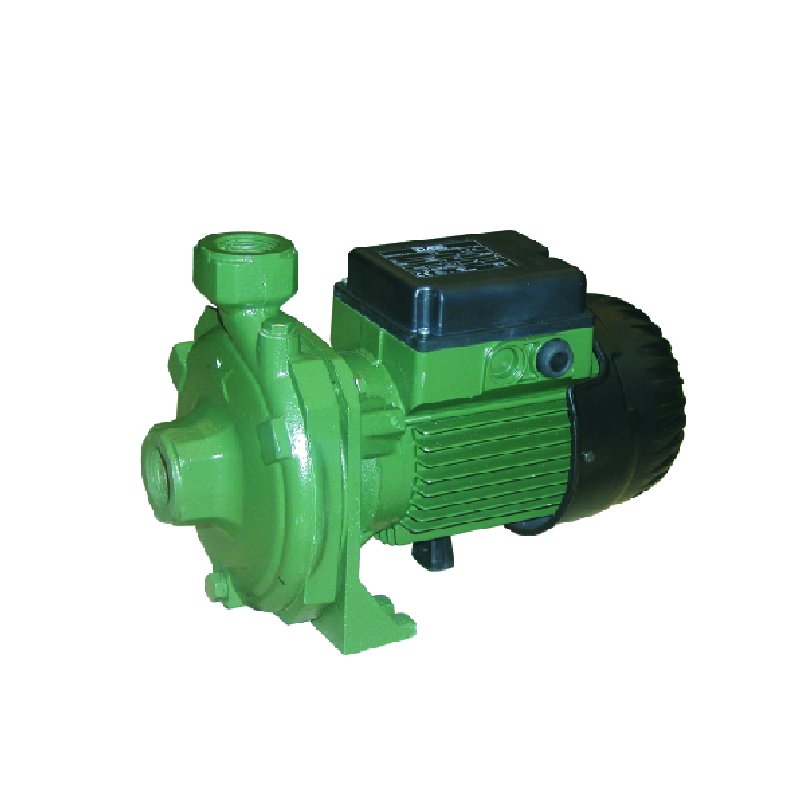

DAB-K14-400T - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 650L/MIN 19M 1.85KW 415V

Code: 701616

Print
Product Code
PUMP, CENTRIFUGAL K14-400T
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 1.9
Suitable For Water Transfer
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 650
Hp 2.5
kPa 192
Kilo Watts 1.85
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 19
Port Size Inlet 2" BSPF inlet
Port Size Outlet 2" BSPF outlet
Powered Electric
Volts 415
Warranty (months) 24
Watts 1850
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5HP, 415V, 2 pole, max hd 19m, max flow 650L/m, Ports 2" BSPF In, 2" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.03
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702308
DABSR00005428
702207
DABSR00005199
702129
DABSR00004703
702219
DABSR00005213
702214
DABSR00005208
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
