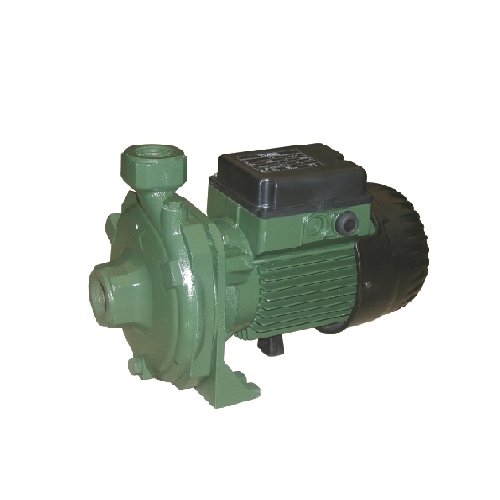

DAB-K20-41M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 100L/MIN 22M 0.37KW 240V

Code: 701618

Print
Product Code
PUMP, CENTRIFUGAL K20-41M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 2.2
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 100
Hp 0.5
kPa 223
Kilo Watts 0.37
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 22
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 370
Description
Single Impeller Centrifugal Pump

Ideal for rivers, tanks, dams and water transfer applications.

0.37kW, 0.5hp, 240V, 2 pole, max hd 22m, max flow 100L/m, Ports 1" BSPF In, 1" BSPF Out

2 Year Dab Pumps Warranty
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
804949
DABS R00005496
DABSR00005496 K12/20 O RING-GASKET DABS R00005496
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
702628
DABSR00007493
IMPELLER, K20/41M-N.5 R00007493 DABSR00007493
702081
DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
