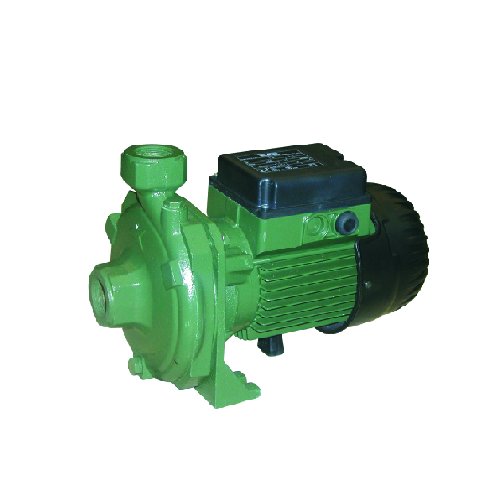

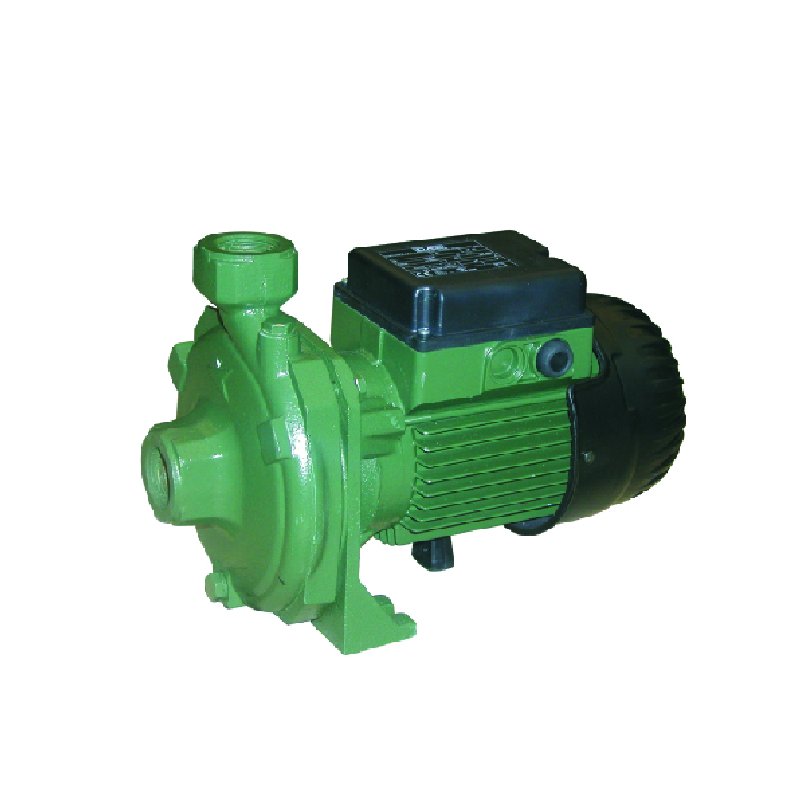

DAB-K30-100M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 180L/MIN 29.2M 1.1KW 240V

Code: 701621

Print
Product Code
PUMP, CENTRIFUGAL K30-100M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 2.92
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 180
Hp 1.5
kPa 296
Kilo Watts 1.1
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 29.2
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 1100
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

1.1kW, 1.5hp, 240V, 2 pole, max hd 29.2m , max flow 180L/m, Ports 1 1/2" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.02
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702212
DABSR00005206
CAPACITOR DP151M-N.3
702308
DABSR00005428
DISCHARGE PLUG DP100M-N.3
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
