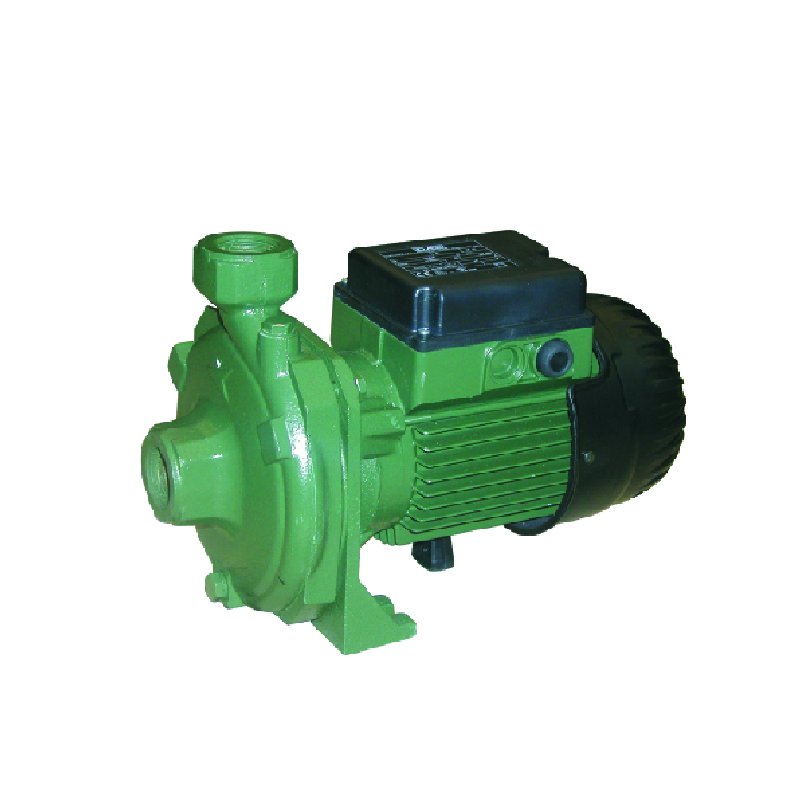

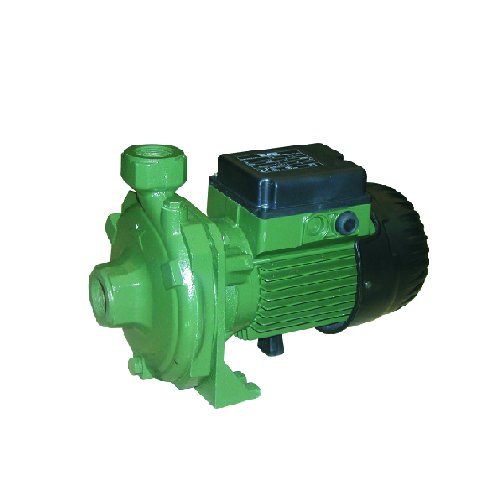

DAB-K30-70M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 120L/MIN 31.8M 0.75KW 240V

Code: 701623

Print
Product Code
PUMP, CENTRIFUGAL K30-70M

Where to Buy

Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 3.18
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120
Hp 1
kPa 322
Kilo Watts 0.75
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 31.8
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 750
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

0.75kW, 1.0hp, 240V, 2 pole, max hd 31.8m, max flow 120L/m, Ports 1" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
