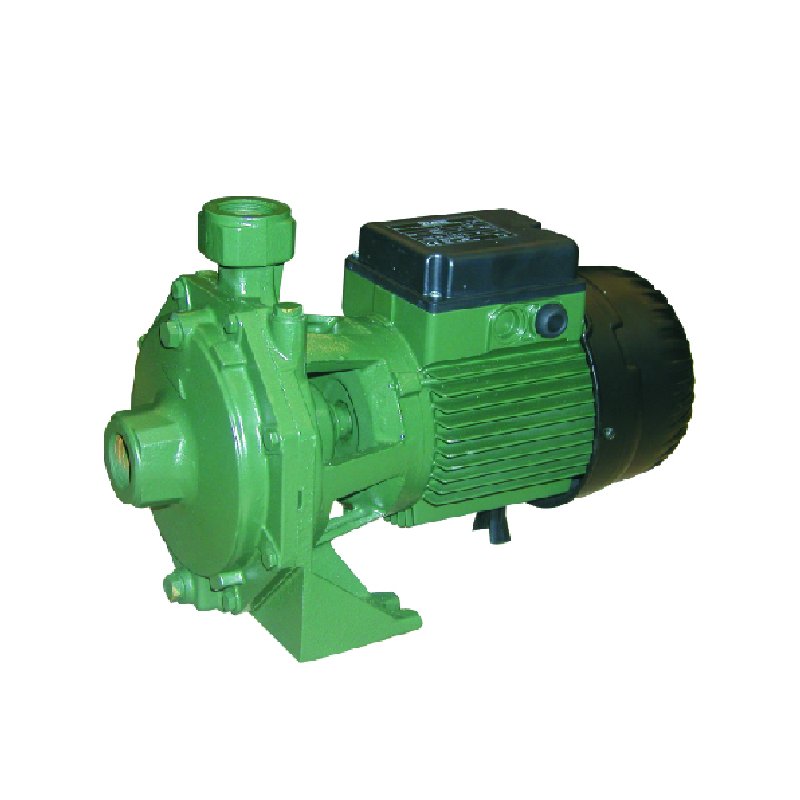

DAB-K35-40M - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 92L/MIN 43.5M 0.75KW 240V

Code: 701624

Print
Product Code
PUMP, CENTRIFUGAL K35-40M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Bar 4.35
Suitable For Water Transfer
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 92
Hp 1
kPa 441
Kilo Watts 0.75
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 43.5
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 750
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

0.75kW, 1.0hp, 240V, 2 pole, max hd 43.5m, max flow 92L/m, Ports 1" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702117
DABSR00004140 20UF PRONG
CAPACITOR K35/40M-N.7 20UF DABSR00004140 20UF PRONG
702419
DABSR00008354
DABS R00008354 R3 TYPE 15mm SEAL K35/40M-N.7 DABSR00008354
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
