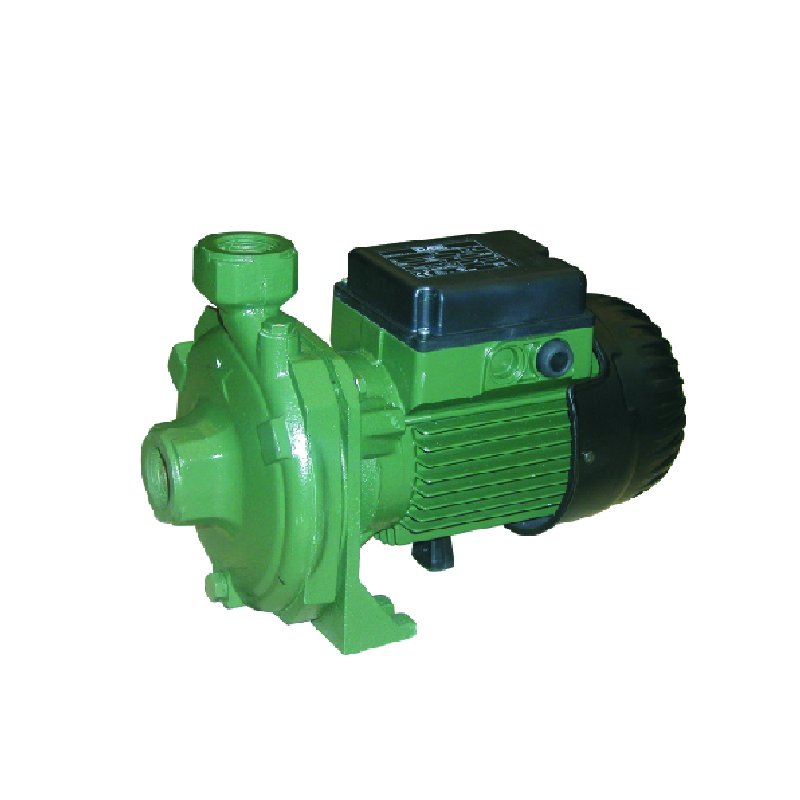

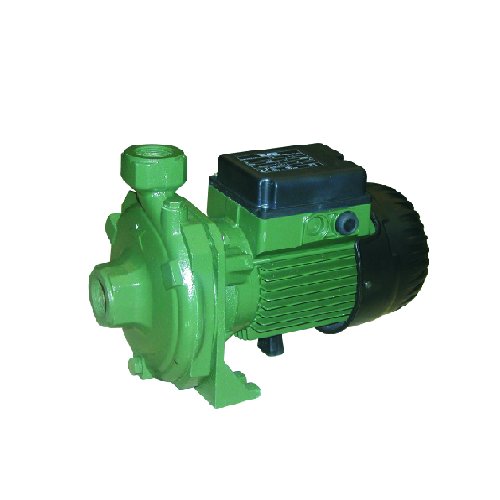

DAB-K36-100M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 180L/MIN 34.9M 1.85KW 240V

Code: 701625

Print
Product Code
PUMP, CENTRIFUGAL K36-100M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 3.49
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 180
Hp 2.5
kPa 354
Kilo Watts 1.85
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 34.9
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 1850
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5hp, 240V, 2 pole, max hd 34.9m, max flow 180L/m, Ports 1 1/2" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702222
DABSR00005230
CAPACITOR DP251M-N.1
702632
DABSR00007497
DABS R00007497 IMPELLER K36/100M-N.1 DABSR00007497
702308
DABSR00005428
DISCHARGE PLUG DP100M-N.3
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
