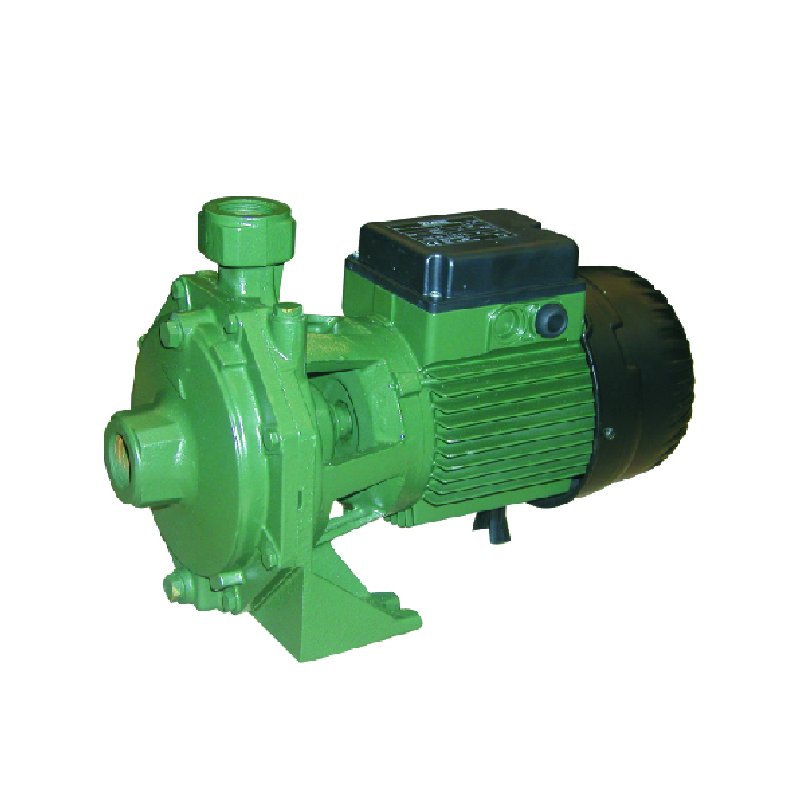

DAB-K45-50M - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 110L/MIN 51M 1.1KW 240V

Code: 701628

Print
Product Code
PUMP, CENTRIFUGAL K45-50M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Bar 5.1
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 110
Hp 1.5
kPa 517
Kilo Watts 1.1
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 51
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 1100
Description
Twin Impeller Centrifugal Pumps

Ideal for rivers, tanks, dams and water transfer applications.

1.1kW, 1.5hp, 240V, 2 pole, max hd 51m, max flow 110L/m, Ports 1¼" BSPF In, 1" BSPF Out

2 Year Dab Pumps Warranty
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.03
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702212
DABSR00005206
CAPACITOR DP151M-N.3
702424
DABSR00005622
DABS R00005622 GASKET K45/50M-N.3 DABSR00005622
702426
DABSR00005624
DABS R00005624 COMPLETE STAGE K45/50M-N.3 DABSR00005624
702419
DABSR00008354
DABS R00008354 R3 TYPE 15mm SEAL K35/40M-N.7 DABSR00008354
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
