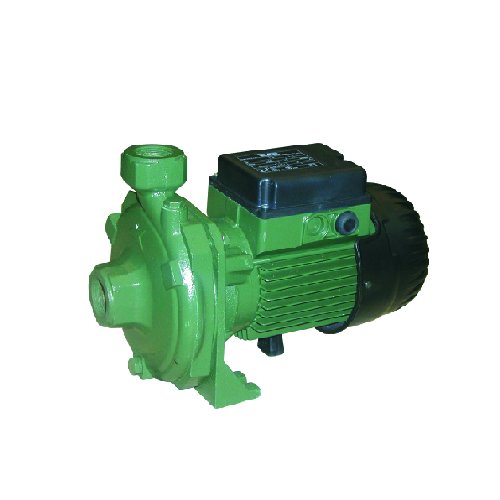

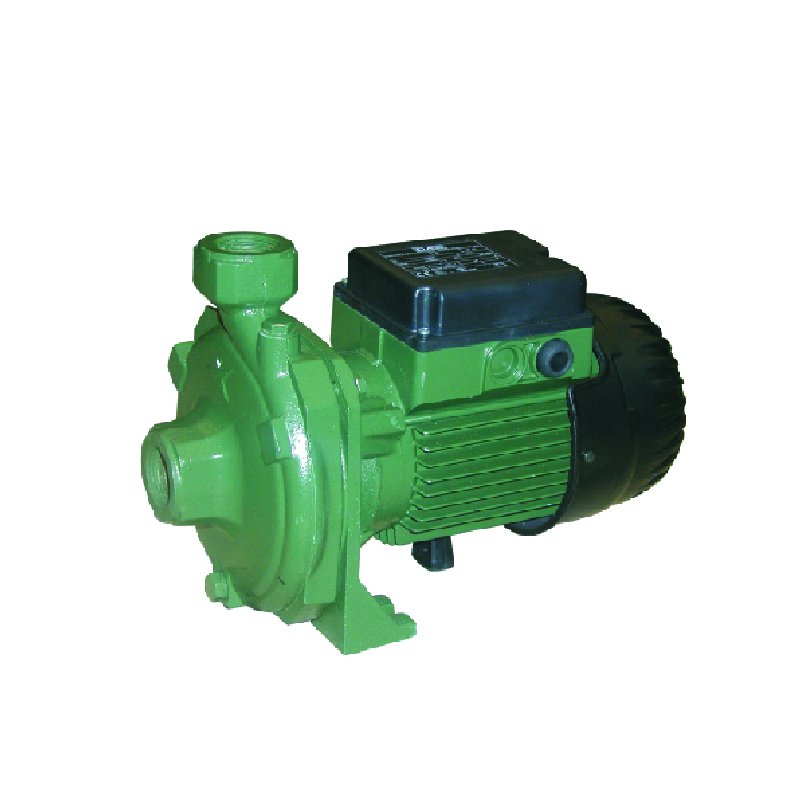

DAB-K55-200T - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 335L/MIN 54M 4.0KW 415V

Code: 701633

Print
Product Code
PUMP, CENTRIFUGAL K55-200T
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Bar 5.4
Suitable For Water Transfer
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 335
Hp 5.5
kPa 547
Kilo Watts 4
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 54
Port Size Inlet 2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 415
Warranty (months) 24
Watts 4000
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

4.0kW, 5.5hp, 415V, 2 pole, max hd 54m, max flow 335L/m, Ports 2" BSPF In, 1 1/4” BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702387
DABSR00005551
DABS R00005551 SEAL K28/500T-N.2
702636
DABSR00007501
DABS R00007501 IMPELLER K55/200T-N.6 DABSR00007501
702308
DABSR00005428
DISCHARGE PLUG DP100M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
