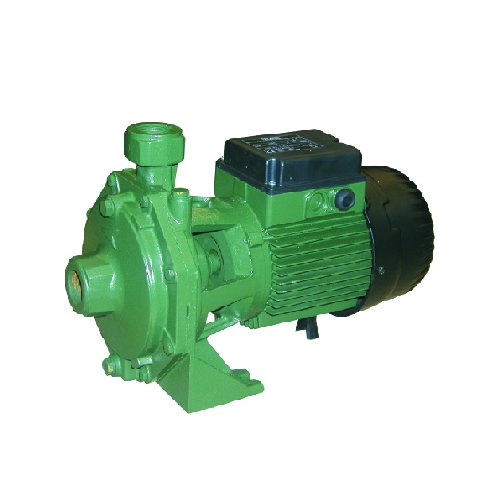

DAB-K55-50M - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 110L/MIN 62M 1.85KW 240V

Code: 701634

Print
Product Code
PUMP, CENTRIFUGAL K55-50M
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Bar 6.2
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 110
Hp 2.5
kPa 628
Kilo Watts 1.85
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 1850
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5hp, 240V, 2 pole, max hd 62m, max flow 110L/m, Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702222
DABSR00005230
CAPACITOR DP251M-N.1
702431
DABSR00005638
DABS R00005638 COMPLETE STAGE K55/50M-N.1 DABSR00005638
702419
DABSR00008354
DABS R00008354 R3 TYPE 15mm SEAL K35/40M-N.7 DABSR00008354
702430
DABSR00005636
DABSR00005632 - O RING-GASKET
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
