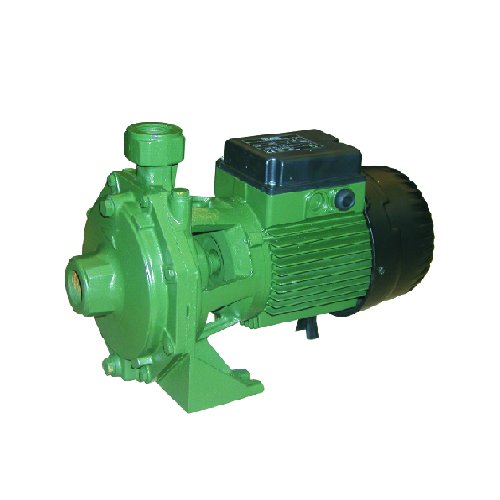

DAB-K55-50T - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 110L/MIN 62M 1.85KW 415V

Code: 701635

Print
Product Code
PUMP, CENTRIFUGAL K55-50T
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Bar 6.2
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 110
Hp 2.5
kPa 628
Kilo Watts 1.85
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 415
Warranty (months) 24
Watts 1850
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5hp, 415V, 2 pole, max hd 62m, max flow 110L/m, Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702424
DABSR00005622
DABS R00005622 GASKET K45/50M-N.3 DABSR00005622
702431
DABSR00005638
DABS R00005638 COMPLETE STAGE K55/50M-N.1 DABSR00005638
702419
DABSR00008354
DABS R00008354 R3 TYPE 15mm SEAL K35/40M-N.7 DABSR00008354
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
