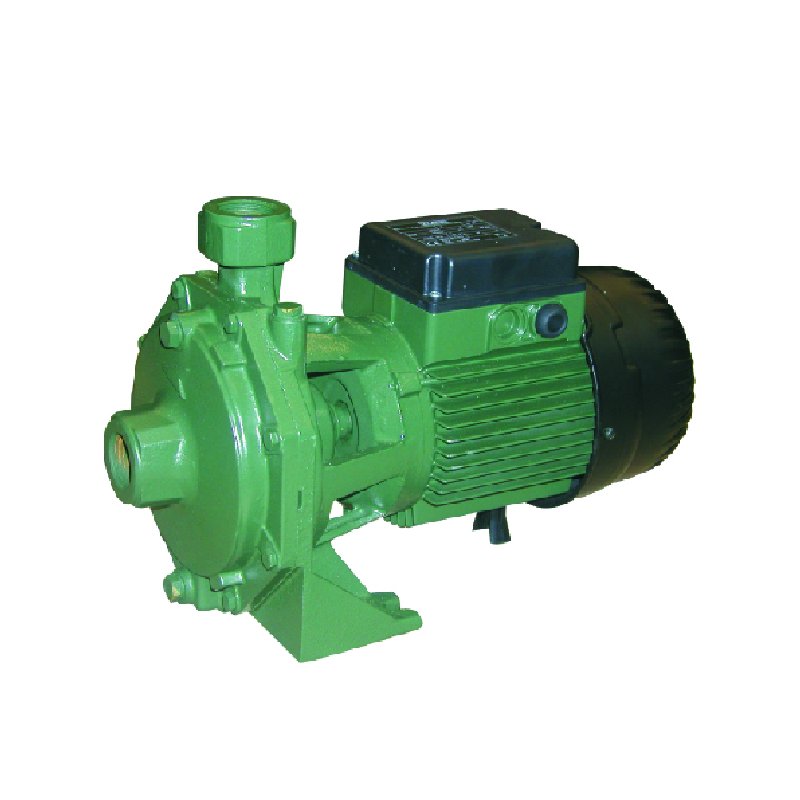

DAB-K66-100T - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 160L/MIN 73M 3.0KW 415V

Code: 701636

Print
Product Code
PUMP, CENTRIFUGAL K66-100T
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Bar 7.3
Suitable For Water Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 160
Hp 4
kPa 739
Kilo Watts 3
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 73
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 415
Warranty (months) 24
Watts 3000
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

3.0kW, 4.0hp, 415V, 2 pole, max hd 73m, max flow 160L/m, Ports 1 1/2" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.04
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702436
DABSR00005649
DABS R00005649 GASKET K66/100T-N.4 DABSR00005649
702439
DABSR00005652
DABS R00005652 SEAL K66/100T-N.4 DABSR00005652
702442
DABSR00005655
DABS R00005655 COMPLETE STAGE K66/100T-N.4 DABSR00005655
702308
DABSR00005428
DISCHARGE PLUG DP100M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
