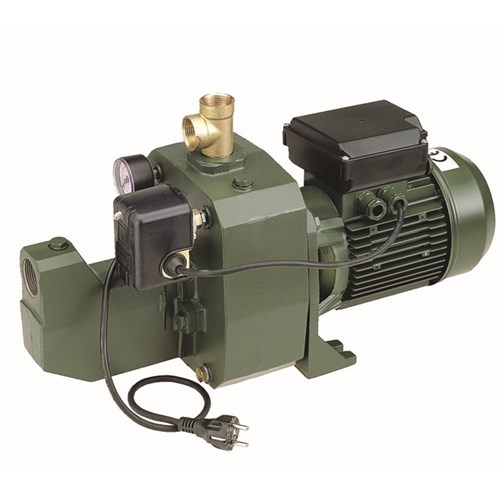

DAB-151MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V

Code: 701389

Print
Product Code
DAB-151MP
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Bar 6.1
Suitable For Tank Transfer
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75
Hp 1.5
kPa 618
Kilo Watts 1.1
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 61
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 1100
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out

PRESSURE TANKS ARE SOLD SEPARATELY

Warranty

2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
