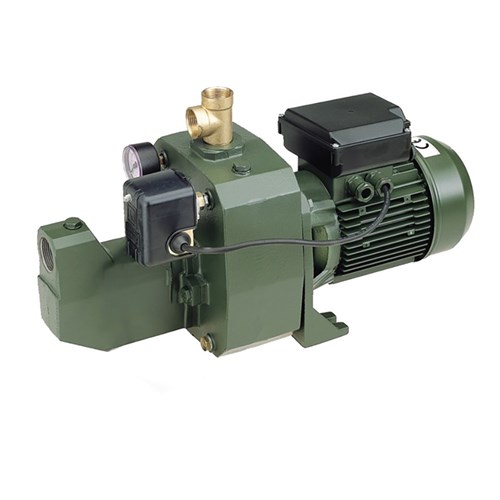

DAB-151TP PUMP SURFACE MOUNT CAST IRON WITH PRESSURE SWITCHCLEAN WATER 75L/M 61M 1.1KW 415V

Code: 701395

Print
Product Code
DAB-151TP
Find Your Nearest Store
Product Documents
Technical Specifications
Brand DAB Pumps
Product Type Twin Stage Shallow Well Jet Pump
Bar 6.1
Suitable For Clean Water
Amps 3
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75
Hp 1.5
Kilo Watts 1.1
Head Range Category a. 0 - 39 m
Max Head (m) 61
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 7
Volts 415
Warranty (months) 24
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702232
DABSR00005245
COMPLETE STAGE DP151M-N.3
702308
DABSR00005428
DISCHARGE PLUG DP100M-N.3
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702235
DABSR00005249
INJECTOR BODY
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702229
DABSR00005242
O RING JET151M-N.3
702236
DABSR00005250
PLUG JET151M-N.3
702252
DABSR00005274
PUMP BODY DP-M-N.3
702227
DABSR00005240
SUPPORT JET-DP-M-N.3
702234
DABSR00005248
VENTURI JET151M-N.3
