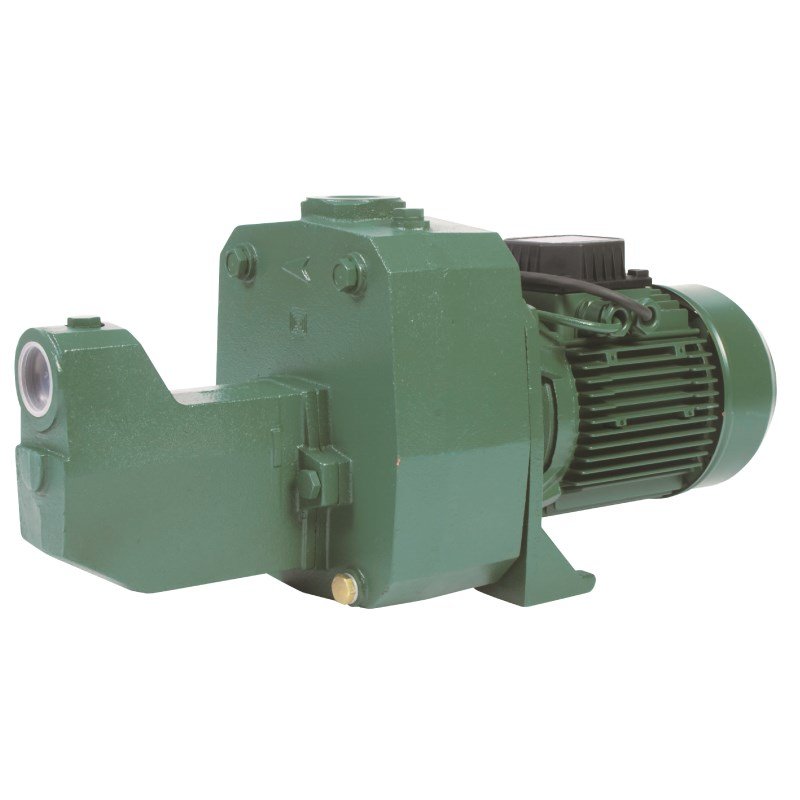

DAB-251M - PUMP SURFACE MOUNTED CAST IRON 120L/MIN 62M 1.85KW 240V

Code: 701401

Print
Product Code
DAB-251M
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Bar 6.2
Suitable For Tank Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120
Hp 2.5
kPa 628
Kilo Watts 1.85
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 1850
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.85kW, 2.5hp, 240V, max hd 62m, max flow 120L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702222
DABSR00005230
702240
DABSR00005254
702308
DABSR00005428
802658
DABS R00009983
702207
DABSR00005199
702129
DABSR00004703
702235
DABSR00005249
702238
DABSR00005252
702219
DABSR00005213
702224
DABSR00005232
702237
DABSR00005251
702239
DABSR00005253
702236
DABSR00005250
702252
DABSR00005274
702227
DABSR00005240
702226
DABSR00005234
702242
DABSR00005256
