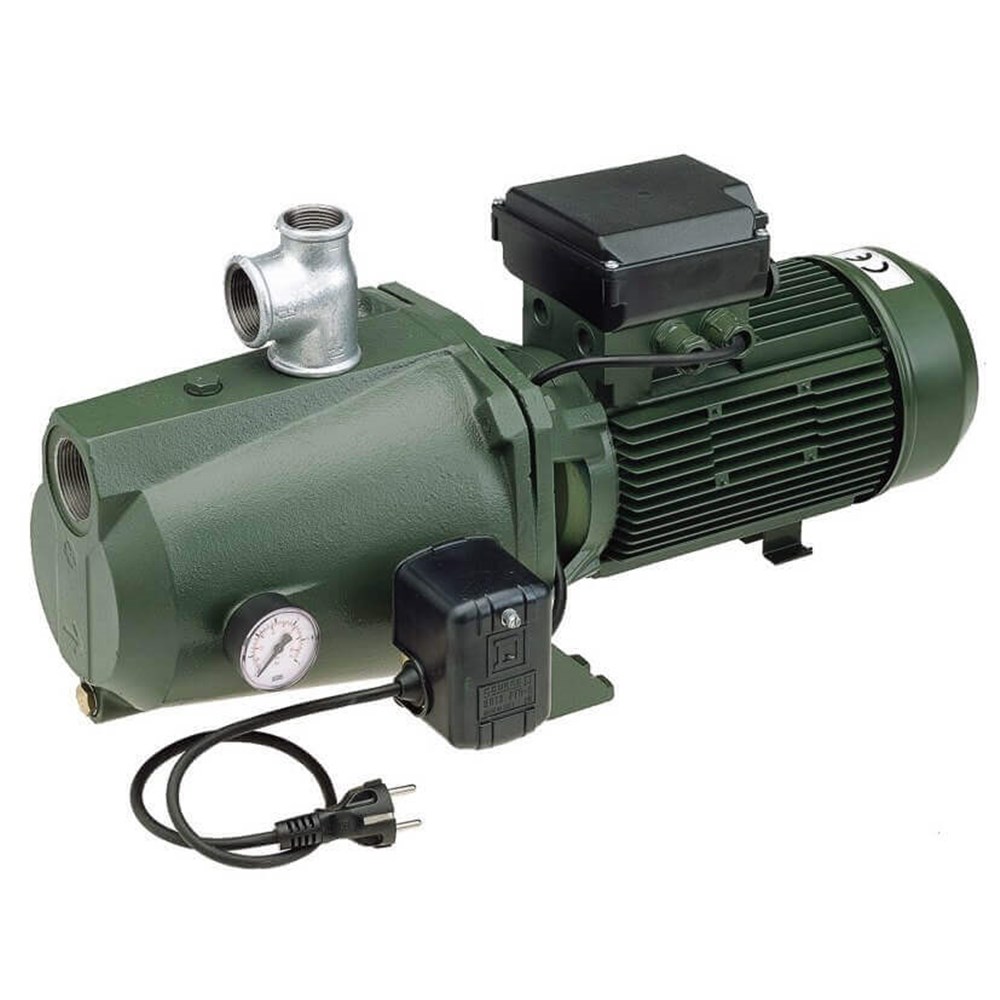

DAB-300MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 51M 2.2KW 240V

Code: 701417

Print
Product Code
DAB-300MP
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Bar 5.1
Suitable For Tank Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175
Hp 3
kPa 517
Kilo Watts 2.5
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 51
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 240
Warranty (months) 24
Watts 2500
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

2.2kW, 3.0hp, 240V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

PRESSURE TANKS ARE SOLD SEPARATELY

Warranty

2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702222
DABSR00005230
702308
DABSR00005428
702207
DABSR00005199
702129
DABSR00004703
702223
DABSR00005231
702219
DABSR00005213
702216
DABSR00005210
702224
DABSR00005232
702220
DABSR00005221
702208
DABSR00005200
702226
DABSR00005234
702218
DABSR00005212
