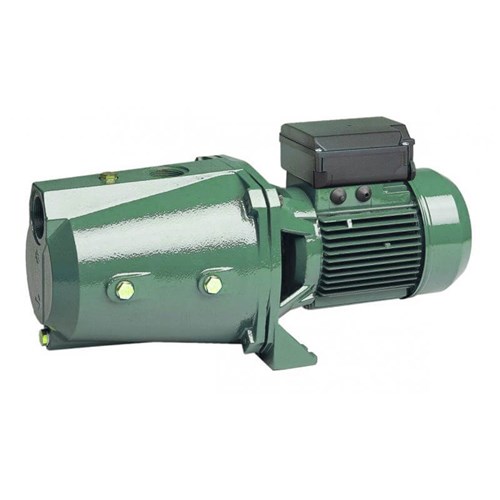

DAB-300T - PUMP SURFACE MOUNTED CAST IRON 175L/MIN 51M 2.2KW 415V

Code: 701419

Print
Product Code
DAB-300T
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Bar 5.1
Suitable For Tank Transfer
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175
Hp 3
kPa 517
Kilo Watts 2.2
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 51
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 415
Warranty (months) 24
Watts 2200
Description
Self Priming Single Stage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

2.2kW, 3.0hp, 415V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
3 phase pumps require contactor and overload.

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
