BOREHOLE PUMPS - VARAIBLE FREQUENCY DRIVES
Variable Frequency Drive

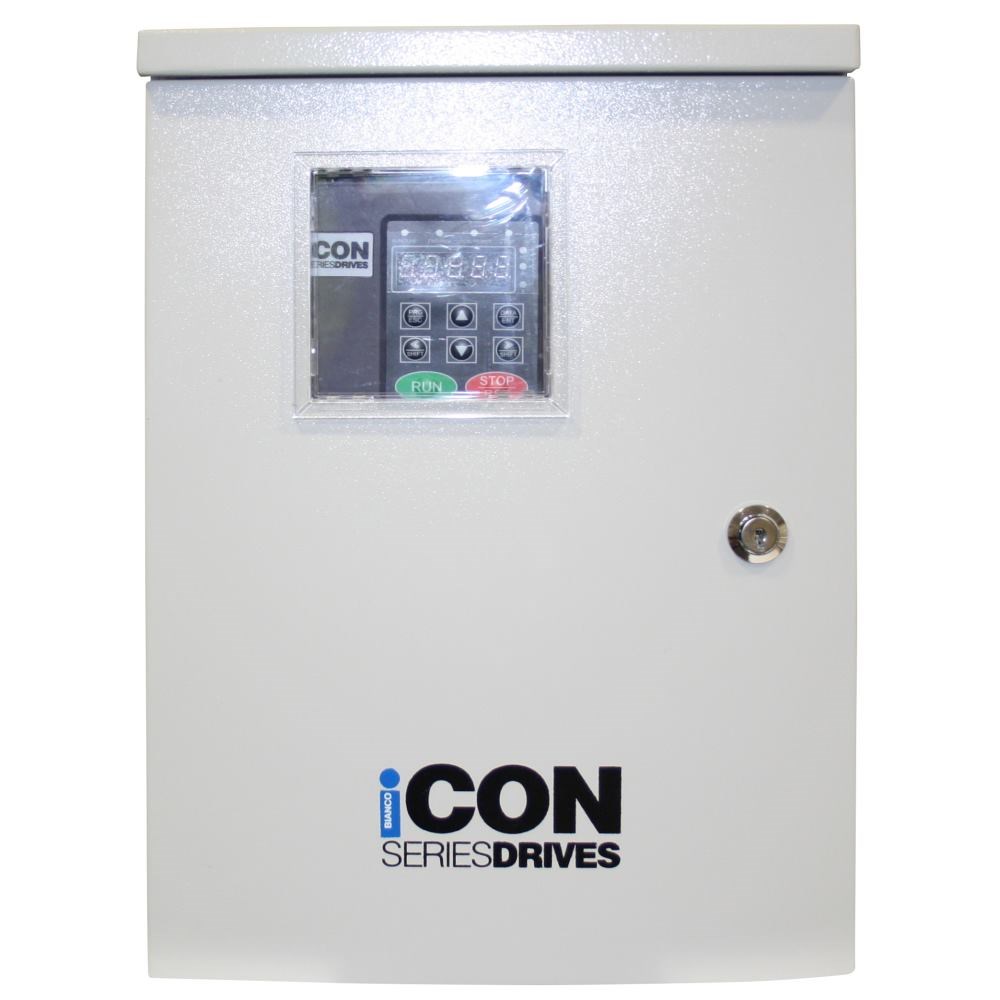

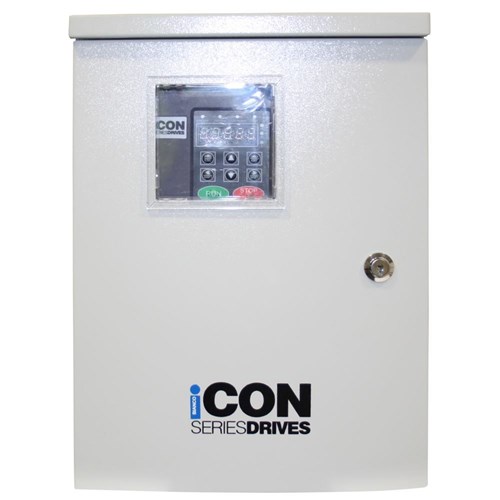

The BIANCO iSUB22 is a 240V single phase input variable frequency drive for the control of pumps up to 1.5kW, 240V 3 phase. It is particularly suitable for borehole pumps. It is mounted in an outdoor enclosure with independent fan cooling and inspection window. Also included is a 1" stainless manifold, pressure transducer and pressure gauge.
Features:
- Constant water pressure
- Optimises pump performance
- Soft start, low motor start current
- No large pressure tank required
Protection:
- Dry run protection
- High and low voltage protection
- Input and output short circuit protection
- High and low water pressure protection
- Input and output phase failure protection
- Over temperature protection
- Sensor fault protection
Variable frequency drive for up to 1.5kW, 240V, 3 phase pumps.
