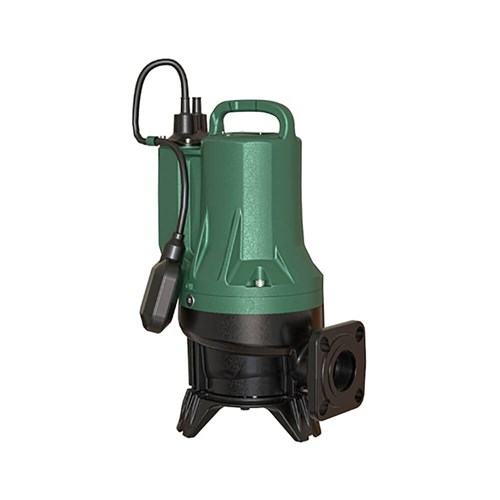

DAB-FEKAFXC20.07MA - Drainage Submersible Pump 600 L/M 9.8M 0.7KW 240V Auto

Code: 810198

Print
Product Code
DAB-FEKA FXC 20.07 MA
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 1
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 600
Kilo Watts 0.7
Head Range Category a. 0 - 39 m
Max Head (m) 9.8
Port Size Outlet RP2" - DN50PM10/6
Volts 240
Description

Drainage Pump

Max head 9.8m, max flow 600 L/m, 2"BSPF

Features

  • Anti-clogging channel impeller.
  • Suitable for drainage and the transfer of effluent and sewage water, containing solids up to 50mm
  • Pump with patented super vortex impeller increase performance without compromising the ability to work in the presence of large solids and long fibres, guaranteeing a completely free passage.
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Super Vortex impeller, patented by DAB
  • Threaded and flanged outlet

Warranty

2 Year Pump Parts and Labour Warranty
