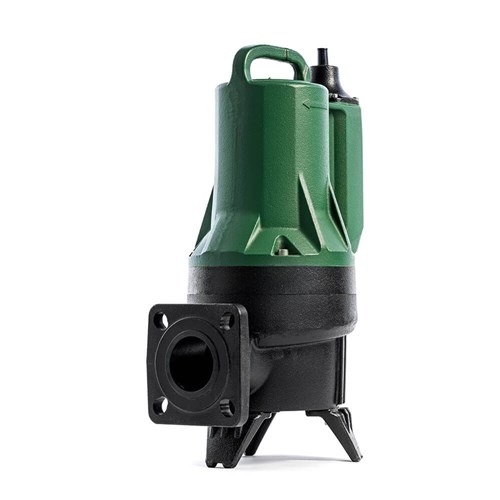

DAB FEKAFXC20.11TEX - Drainage IECX Approved Submersible Pump 720 L/M 12.4M 1.1KW 415V

Code: 809451

Print
Product Code
DAB-FEKAFXC20.11TEX
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 1.2
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 720
Kilo Watts 1
Head Range Category a. 0 - 39 m
Max Head (m) 12.4
Volts 415
Description

Drainage Pump

Max head 12.4m, max flow 720 L/m, 2"BSPF

Features
  • Anti-clogging channel impeller.
  • Suitable for drainage and the transfer of effluent and sewage water, containing solids up to 50mm
  • Pump with patented super vortex impeller increase performance without compromising the ability to work in the presence of large solids and long fibres, guaranteeing a completely free passage.
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Super Vortex impeller, patented by DAB
  • Threaded and flanged outlet
Warranty

2 Year Pump Parts and Labour Warranty
