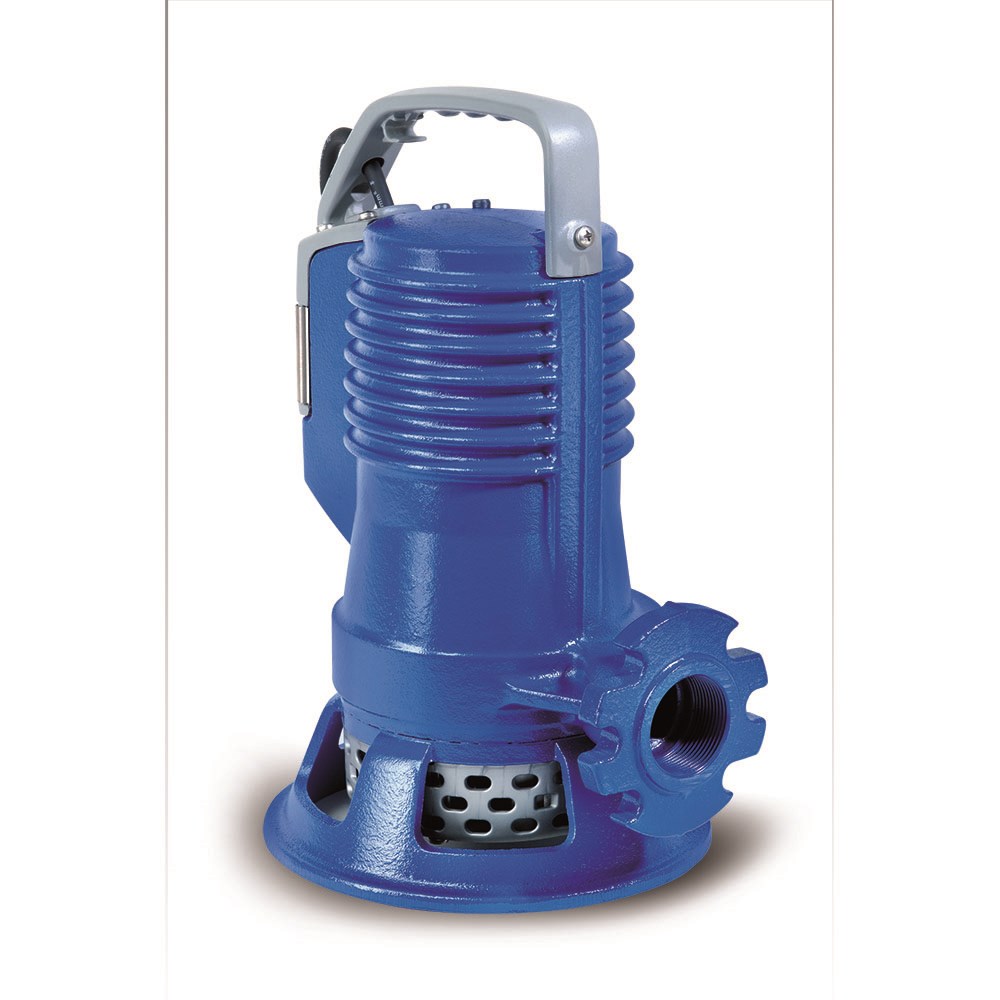

ZEN-APBLUEP100/2/G40HTEX - PUMP SUB IECEX SLIGHTLY DIRTY WATER HIGH HEAD 360L/M 17.3M 0.75

Code: 711096

Print
Product Code
ZEN-APBLUEP100/2/G40HTEX
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.73
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 360
Hp 1
Kilo Watts 0.75
Head Range Category a. 0 - 39 m
Max Head (m) 17.3
Port Size Outlet 1 1/2" BSPF outlet
Particle Size 6 mm
Volts 415
Watts 750
Description
ZENIT AP Blue Professional Series

Used for clear wastewater, rainwater and seepage containing small amounts of sand. Its high manometric head makes this series suitable for the creation of water features and decorative fountains. The electric pump is intended for both domestic and professional use.

0.75kW, 1.0hp, 240V with IECEx float switch, max hd 17.3m, max flow 360L/m, 1 1/2" BSPF outlet. Particle size 6mm.
3 phase pumps require contactor and overload.

Warranty

2 Year Zenit Warranty

IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, our Pumps have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
