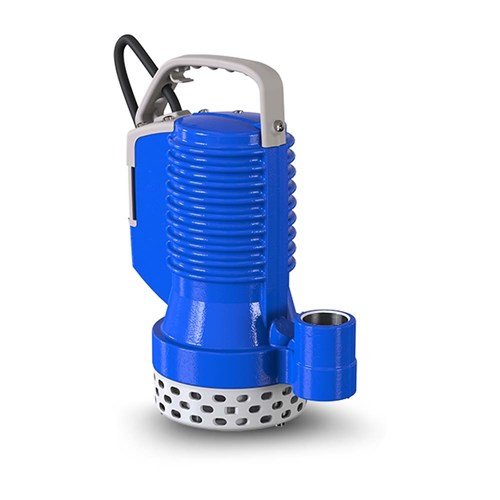

ZEN-DRBLUE75/2/G32VMEX - PUMP SUBMERSIBLE IECEX SLIGHTLY DIRTY WATER DOMESTIC 240L/M 12M 0

Code: 711290

Print
Product Code
ZEN-DRBLUE75/2/G32VMEX
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.2
Approval IECex Zone 2 Approved
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 300
Hp 0.75
Kilo Watts 0.55
Head Range Category a. 0 - 39 m
Max Head (m) 12
Port Size Outlet 1 1/4" BSPF outlet
Particle Size 7 mm
Volts 240
Watts 550
Description
ZENIT DR Blue Series - Open multi-vane fully sumberged impeller

Ideal for use with clear or slightly soiled wastewaters containing small solids, strained water, rainwater, seepage and water pumped from underground. Suitable and reliable for domestic use, including heavyduty applications.

0.55kW, 0.75hp, 240V without float switch, max hd 12m, max flow 300L/m, 1 1/4” BSPF outlet. Particle size 7mm.

Warranty

2 Year Zenit Warranty

IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, our Pumps have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
Spare Parts
Code
Part Number
Description
711365
ZEN-EDR50M-19
BEARING 6201Z 21292620102
711018
ZEN235678024237
GLAND NO FLOAT
801156
ZEN 601008002
KIT GASKET BLUE
710980
ZEN2162311323458
PLATE ACS DRBLUE
802762
ZEN602008012
SEAL KIT BLUE
