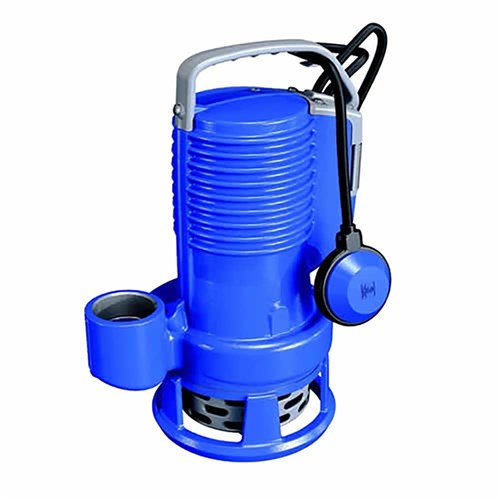

ZEN-DRBLUEP200/2/G50VMGEX - PUMP SUBMERSIBLE IECEX SLIGHTLY DIRTY WATER INDUSTRIAL 690L/M

Code: 711710

Print
Product Code
ZEN-DRBLUEP200/2/G50VMGEX
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.7
Approval IECex Zone 2 Approved
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 690
Hp 2
Kilo Watts 1.5
Head Range Category a. 0 - 39 m
Max Head (m) 17
Port Size Outlet 2" BSPF outlet
Particle Size 10X30 mm
Volts 240
Watts 1500
Description
ZENIT DR Blue Professional Series - Open multi-vane fully submerged impeller

Suitable for use with clear or slightly soiled wastewaters containing small solids, strained water, rainwater,seepage and water pumped from underground, where high pumping rates are required. This electric pump is intended for both domestic and professional use.

1.5kW, 2.0hp, 240V with IECEx float switch, max hd 17m, max flow 690L/m, 2" BSPF outlet. Particle size 10x30mm.

Warranty

2 Year Zenit Warranty

Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Zenit DR BluePRO Features
.
1. Lifting handle
Ergonomic aluminium lifting and carrying handle, coated for excellent mechanical strength and corrosion resistance. Clip floatswitch adjustment.
2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
3. Motor and electrical accessories
Dry motor with thermal protections. Single-phase models with internal capacitor. Three-phase models with motor protection relay (option).
4. Mechanical seals
Two silicon carbide mechanical seals (2SiC), and V-ring in direct contact with the liquid.
5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
6. Breather
Breather which allows the air to be vented and ensure reliable pump priming even after long periods out of use.
7. Intake strainer
Stainless steel intake strainer and diffuser plate (models 50, 75 and 100). Polypropylene intake strainer with cast iron diffuser plate and foot (models 150 and 200).


IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, our Pumps have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
Spare Parts
Code
Part Number
Description
711360
ZEN-EDR100M-19
BEARING 6203ZZ
750023
ZEN-BEARING6303Z
BEARING 6303Z
711022
ZEN2517028100000
CAPACITOR 30 UF
600671
ZEN2145113023902
FOOT BASE DRBLUEP200
711017
ZEN235678024236
GLAND SUIT FLOAT
710973
ZEN21411001000623948
IMPELLER DRBLUEP200
801156
ZEN 601008002
KIT GASKET BLUE
710995
ZEN9050.105
Mechanical Seal
711079
ZEN602008032
MECHANICAL SEAL ASSY
804984
ZEN 235361024325
POLY HANDLE BLUEPRO150-200
711065
ZEN3511#01700240151215
WASHER
