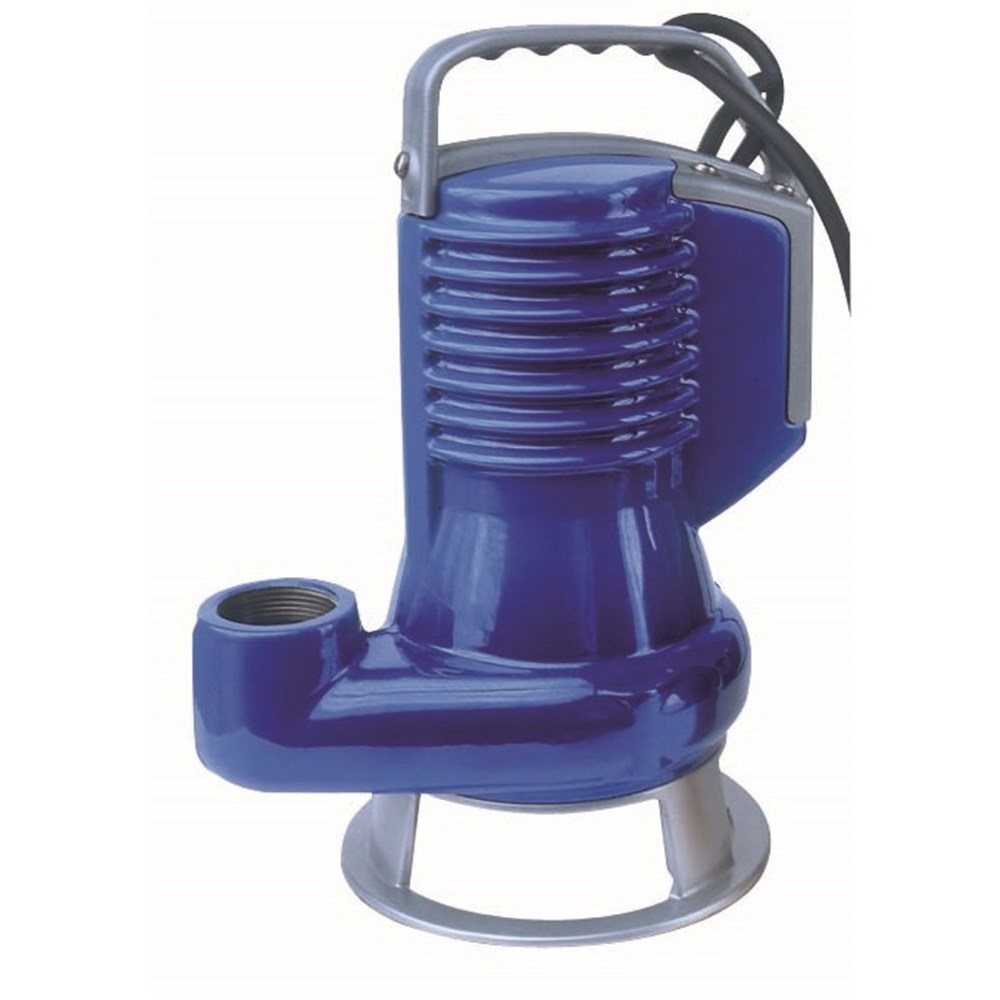

ZEN-DGBLUE50/2/G40VMGEX - PUMP SUBMERSIBLE IECEX DIRTY WATER DOMESTIC 290L/M 7.8M 0.37KW 2

Code: 800345

Print
Product Code
ZEN-DGBLUE50/2/G40VMGEX
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 0.78
Suitable For Dirty Water
Approval IECex Zone 2 Approved
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 290
Hp 0.5
Kilo Watts 0.75
Head Range Category a. 0 - 39 m
Max Head (m) 7.8
Port Size Outlet 1 1/2" BSPF outlet
Particle Size 40 mm
Volts 240
Warranty (months) 24
Watts 750
Description
ZENIT DG Blue Series - Vortex recessed impeller

Used with soiled biological wastewaters and sewage. Suitable and reliable for domestic use and residential applications.

0.37kW, 0.5hp, 240V with IECEx float switch, max hd 7.8m, max flow 290L/m, 1 1/2" BSPF outlet. Particle size 40mm.

Warranty

2 Year Zenit Warranty

IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, our Pumps have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
