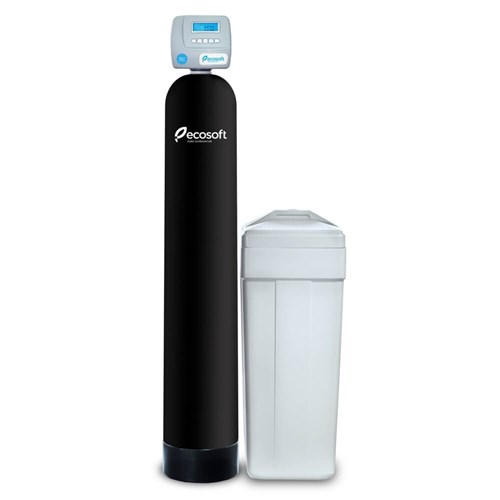

FU Series Softener 1252 for Hardness and Lime Scale Removal

Code: 807467

Print
Product Code
ECO-FU1252CE
Find Your Nearest Store
Technical Specifications
Brand Ecosoft
Product Type Softeners
Flow Rate (L/min) 48
Inlet/Outlet 1"
Min Pressure (bar) 2
Max Pressure (bar) 6
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 30
Application Whole Supply
Filter Softener
Description

The FU series softener in 1252 size is the most popular model for domestic applications and small-medium applications like dairy shed, cafes, restaurants, motels etc. This is suitable for domestic or light commercial use. Volume processed between regenerations is determined by hardness level.

System Specifications FU 1252 CE
Nominal Flow Rate 48.3lpm (2.9m3/hr)
Media Volume 62L
Capacity 3,150g
Salt Consumption Per Regeneration 6.2-7.5kg
Water Consumption Per Regeneration

620L

Regeneration Duration 80-110 mins
Pressure Drop in Service Mode 0.5 - 1.0 bar
Power Consumption 30W
Inlet/Outlet Size 1”NPT
System Dimensions (width x depth x height) 73x45x155cm
Net Weight 87kg
Features
FU Series Softeners:

A range of robust water softeners that perform as well in rural commercial/industrial applications as it does in town.

Twin setups are also available on request in either alternating or parallel setups.

Equipped with a Clack control valves with special programing to make your life easier

The brine drum and media are included.

Don’t forget to order salt for regeneration separately


Benefits of Soft Water

A water softener can make a real difference to your life by removing hardness from your water.

Here are just a few of the benefits you can gain from soft water:

  • Scale/water spot free kitchen and bathroom
  • Softener skin and hair
  • Savings on heating bills
  • Save on detergents, soaps, shampoo and conditioner
  • Less maintenance on appliances
  • Spend less time cleaning
Operating Specs
Operating Specs
Water Temperature4-30°C
Operating Pressure2-6bar
Recommended Pre-Filter Rating100micron
Operating EnvironmentIndoor or Outdoor with additional cover


Requirements for Feed Water

Requirements for Feed Water
Max Hardness (mg/L = ppm = g/m3)750
Max Iron (mg/L = ppm = g/m3)0.2
Max Manganese (mg/L = ppm = g/m3)0.05
Chemical Oxygen Demand, mg O2/L5.0
Required level of pre-filtration (Microns)100
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
