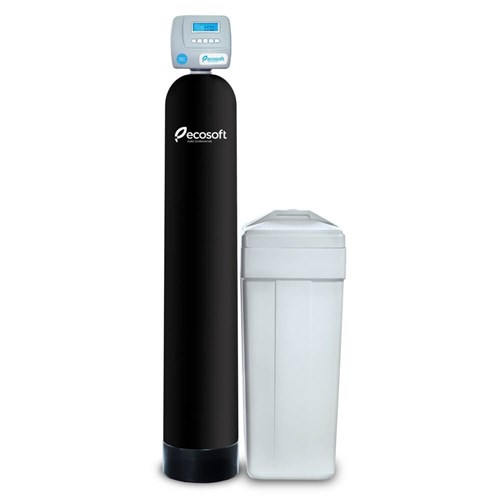

FU Series Softener 1665 for Hardness and Lime Scale Removal

Code: 807469

Print
Product Code
ECO-FU1665CE
Find Your Nearest Store
Technical Specifications
Brand Ecosoft
Product Type Softeners
Flow Rate (L/min) 86.6
Inlet/Outlet 1"
Min Pressure (bar) 2
Max Pressure (bar) 6
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 30
Application Whole Supply
Filter Softener
Description

The FU series softener in 1665 size is useful for larger domestic applications and small-medium applications like dairy shed, cafes, restaurants, motels etc. This is suitable for large domestic or light commercial use. Volume processed between regenerations is determined by hardness level.

System Specifications FU 1665 CE
Nominal Flow Rate86.7 lpm (5.2m3/hr)
Media Volume125L
Capacity6,250g
Salt Consumption Per Regeneration12.5 - 15kg
Water Consumption Per Regeneration

1,250L

Regeneration Duration80-110 mins
Pressure Drop in Service Mode0.5 - 1.0 bar
Power Consumption30W
Inlet/Outlet Size1”NPT
System Dimensions (width x depth x height)90 x 50 x 190cm
Net Weight145kg
Features
FU Series Softeners:

A range of robust water softeners that perform as well in rural commercial/industrial applications as it does in town.

Twin setups are also available on request in either alternating or parallel setups.

Equipped with a Clack control valves with special programing to make your life easier

The brine drum and media are included.

Don’t forget to order salt for regeneration separately


Benefits of Soft Water

A water softener can make a real difference to your life by removing hardness from your water.

Here are just a few of the benefits you can gain from soft water:

  • Scale/water spot free kitchen and bathroom
  • Softener skin and hair
  • Savings on heating bills
  • Save on detergents, soaps, shampoo and conditioner
  • Less maintenance on appliances
  • Spend less time cleaning
Operating Specs
Operating Specs
Water Temperature4-30°C
Operating Pressure2-6bar
Recommended Pre-Filter Rating100micron
Operating EnvironmentIndoor or Outdoor with additional cover


Requirements for Feed Water

Requirements for Feed Water
Max Hardness (mg/L = ppm = g/m3)750
Max Iron (mg/L = ppm = g/m3)0.2
Max Manganese (mg/L = ppm = g/m3)0.05
Chemical Oxygen Demand, mg O2/L5.0
Required level of pre-filtration (Microns)100
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
