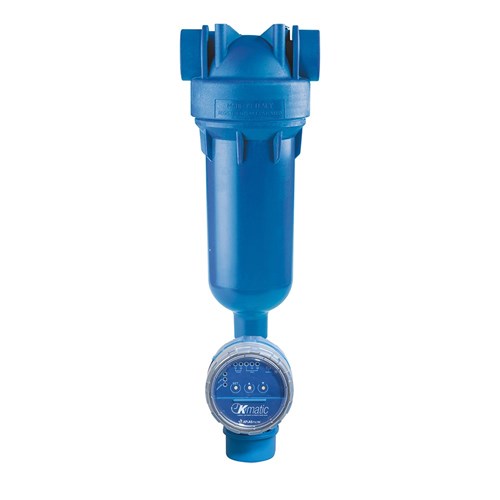

Atlas Filtri Hydra 10" STD Blue Self Cleaning Filter withKMATIC Automatic Backwash Valve

Code: 811259

Print
Product Code
ATL-HYDRAM1BKMATIC
Technical Specifications
Brand Atlas Filtri
Product Type Hydra Self-CleaningFilters
Flow Rate (L/min) 63
Material Polypropylene/PET
Nominal Micron Rating 90
Inlet/Outlet 1/2"
Min Pressure (bar) 1.8 bar (26 psi)
Max Pressure (bar) 8 bar (116 bar)
Min Temp (degrees celsius) 4° C
Max Temp (degrees celsius) 45° C
Application Whole Supply
Filter Hydra
Description

Automatic Drain Valve with timer designed for the Atlas Filtri Hydra series. The K-Matic provides a clean cartridge after every automatic wash.

A Hydra Self Cleaning Filter with 1/2” BSP Brass inlet/outlet with 90-micron stainless steel mesh filter and pressure gauges included. 63lpm

Suitable for coarse sediment filtration in homes on municipal water supplies, as a pre-filter for water treatment on rural supplies as well as some commercial and industrial applications. These filters perform well with lower pressure drop when higher sediment loads are present.


Features

Hydra K-Matic - Cleans Your Water, Cleans Itself

The maintenance for the self-cleaning Hydra is quick and easy, as there is no need to remove the cartridge to clean it.

The K-Matic features a programmable solenoid that cyclically operates the solenoid valve in either manual or automatic mode.

Italian-made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.



Benefits
  • Easy installation
  • User-friendly
  • IP54 water/dust resistance for safe outdoor installation
  • Operated by a 9V battery so you don't need to worry about cables
  • Safety stop will ensure a closed drain if the battery goes flat
  • Suitable for all Hydra Standard models (1/2" BSP Drain)
  • Can choose your own flushing interval in automatic mode from 12 hours, 24 hours, 7 days, 15 days, or 30 days.



Features include:
  • A range of low maintenance mesh filters are available to fit your needs
  • Cartridges feature an anti-microbial flat seal
  • Counter-current self-cleaning system that is either manual or automatic for maximum particle removal
  • The drain funnel has a backflow preventing device, so it is as easy to install on mains water as it is on rural supplies
  • All Hydra models come with a spanner, bracket, and O-ring lubricant (Lubrikit)


Working Conditions
Max. Working Pressure 8 bar (116 psi)
Min. Working Pressure 1.8 bar (26 psi)
Max. Working Temperature 45° C
Min. Working Temperature 4° C
