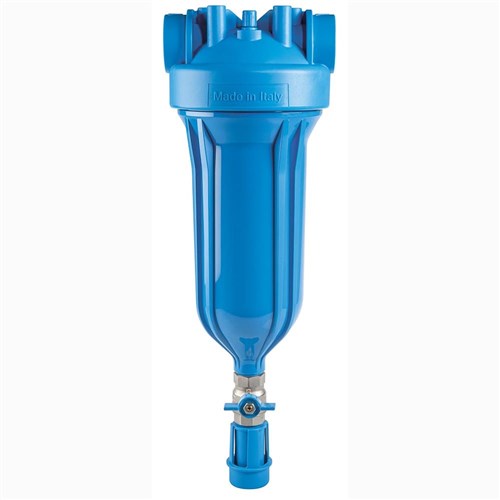

Hydra Blue BIG Self Cleaning Coarse Sediment Filter 90 Micron Stainless Steel Mesh Screen 1.5" Brass BSP In/Out

Code: 810996

Print
Product Code
ATL-HYDRABIGMONO10BLUERAH1.5IN
Technical Specifications
Brand Atlas Filtri
Product Type Hydra Self CleaningFilters
Flow Rate (L/min) 100
Material Polypropylene/PET
Nominal Micron Rating 90
Inlet/Outlet 1.5"
Min Pressure (bar) 1.8
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply
Filter Hydra
Description

Hydra goes BIG with all of the features you have come to expect from the exceptional Hydra range but with BIGGER flows Fantastic for high flow low pressure drop applications with higher sediment loads.

Selected raw materials suitable for drinking water.

  • Head Reinforced Polypropylene
  • Bowl PET
  • O-ring Silicone
  • Breather-valve Body Polypropylene O-ring EPDM
  • Drain funnel Reinforced Polypropylene
  • Gauges Radial type pressure range 0-12 bar, 0-170 psi
Features Benefits
Countercurrent Cleaning System The reverse flow actively pushes dirt off the cartridge meaning you need to remove and clean the cartridge much less often
Hydra goes BIG Bigger flows for bigger applications
5 Year Filter Life Save time & money
Excellent Pre-filter Extends the life of other filters/valves installed after it
Automated Cleaning Cleaning the filter is easy and only takes a minute but it can also be automated saving you even more time
Pressure Gauges or Ports Using pressure gauges is an easy way to see when you need to clean your cartridge – no more unwanted pressure loss
