Hydra Trio with 90 mic Self Cleaning Filter Included, JustAdd 2 x 10" Std Filter Cartridges

Code: 807346

Print
Product Code
ATF-HYDRATRIORAH1IN
Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type Hydra Self CleaningFilters
Flow Rate (L/min) 91.6
Material Polypropylene/PET
Nominal Micron Rating 90
Inlet/Outlet 1"
Min Pressure (bar) 1.8
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply
Description

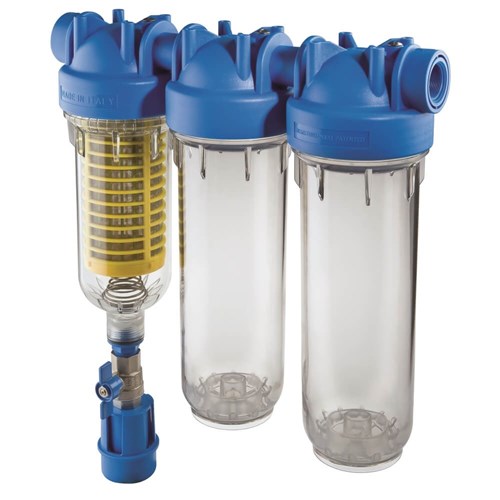

A Hydra Trio Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90 micron stainless steel mesh filter moulded to 2x empty 10” standard housings.

For a complete solution – Just add two filters that suit your needs from our range of 10” standard filter cartridges.

Flow rates will vary depending on which filter cartridges you select.

Suitable for coarse sediment filtration on  non-potable rain water supplies, municipal water supplies, as a pre-filter for water treatment on rural supplies as well as some commercial and industrial applications.

The filter bowls are made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.

Features
Hydra – Cleans Your Water, Cleans Itself

Italian made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.

Features include:

  • A range of low maintenance mesh filters are available to fit your needs
  • Cartridges feature an antimicrobial flat seal
  • Counter-current self cleaning system that is can be either manual or automatic for maximum particle removal
  • The drain funnel has a backflow preventing device, so this is as easy to install on mains as it is in rural
  • All Hydra models come with
    • Spanner
    • Bracket
    • Lubrikit (O-ring Lubricant)
Working Conditions
Max Working Pressure8bar (116 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
Hydra Multi-Stage

The Hydra multistage units are available as the Hydra Duo, a Hydra Filter moulded to a 10” standard filter housing or as the hydra Trio, a Hydra Filter moulded to two 10” standard filter housings.

These are designed to be adaptable to your filtration requirements, just select the filters you require!

Flow rates on these units will depend on the filters you use.
