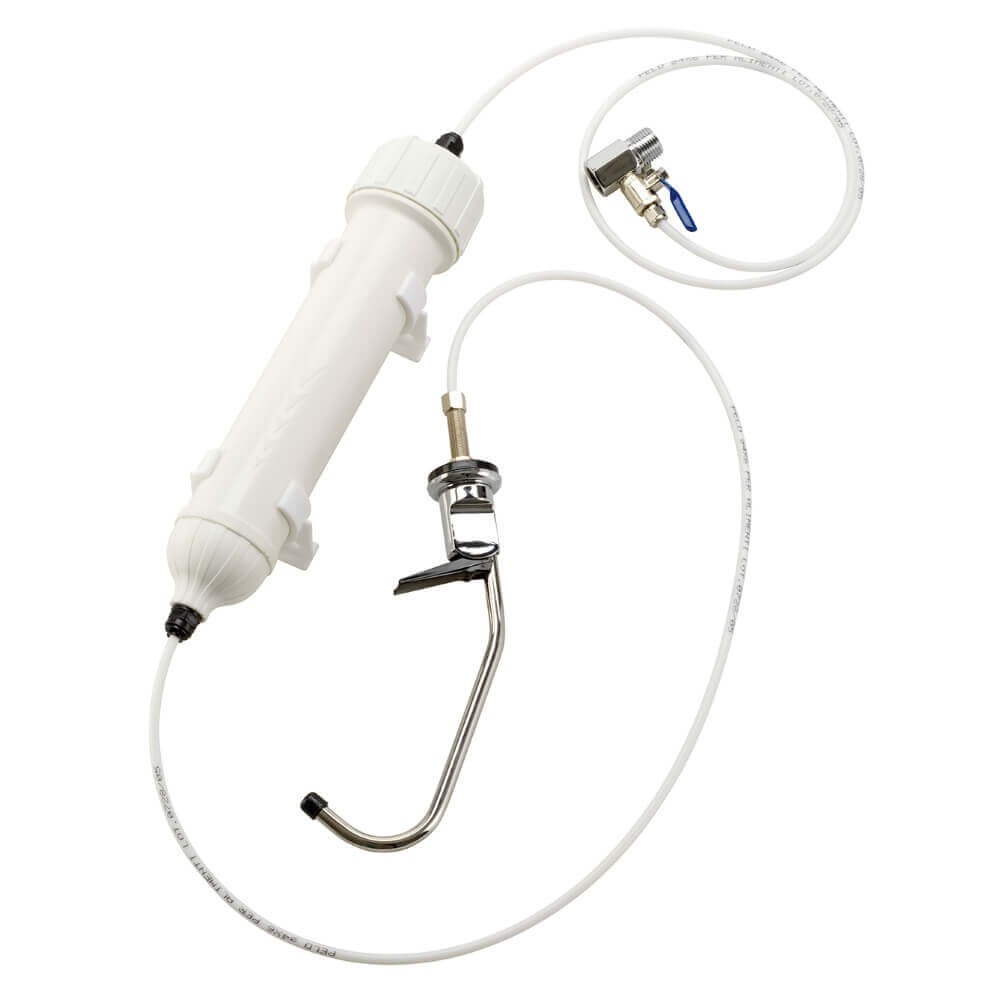

Underbench Inline Filter Kit With Tap and Fittings, Excludes Filter

Code: 807260

Print
Product Code
ATF-INLINEFILTERBW
Find Your Nearest Store
Product Documents
Technical Specifications
Brand Atlas Filtri
Product Type Inline Underbench Filter
Material Reinforced Polypropylene
Inlet/Outlet 1/4"
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Underbench
Filter Inline
Description

A high quality underbench filter kit including a stylish drinking water tap and all  parts required for installation.

A double o-ring system on the filter housing gives added security against water loss

Add a filter cartridge from the selection below to achieve your desired level of filtration.

Features

Italian made, for superior construction, the Atlas Filtri Inline Underbench Filter is a high quality complete system designed to be installed under the kitchen bench to provide improved quality drinking water.

Included in the kit:

  • Dedicated stylish drinking water tap
  • Filter Housing
  • Spanner
  • Quick fit connections
  • Mounting clips & screws
  • Hose
  • Inlet Valve
Working Conditions
Max Working Pressure8bar (116 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Consumables & Accessories

Similar Products

Spare Parts
Code
Part Number
Description
807268
ATL-CLIPS60MMSCREWS
60mm Mounting Clips for Underbench Inline Filter Kit
807261
ATL-INLINEHOUSING1/4
Replacement Housing for Underbench Inline Filter Kit
