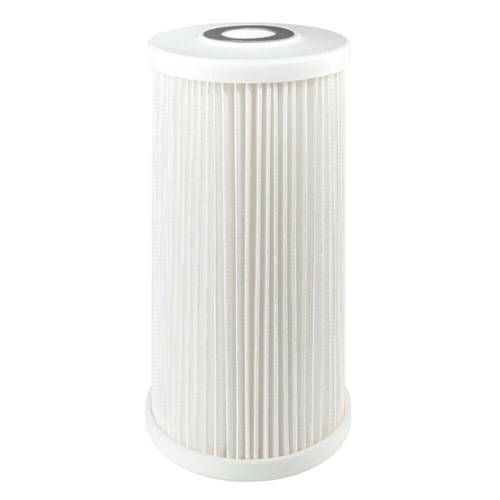

50 Micron Pleated Coarse Sediment Filter 20" Big

Code: 807310

Print
Product Code
ATF-TS20BIGSX50MCR
Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type Pleated Filters
Flow Rate (L/min) 82
Material Polypropylene/Polyester Fabric
Nominal Micron Rating 50
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Filter 20" Big
Description

SEDIMENT FILTERS

  • Sediment Filters are used to remove particles from water and protect downstream taps etc from clogging
  • Sediment cartridges are resistant to attack by bacteria and chemicals and are suitable for a wide range of applications, including domestic, commercial and industrial.

CS & TS Pleated Cartridge Range

  • Pleated cartridges are commonly used as primary filtration for sediment as they can be cleaned and reused.
  • The 20 & 25 micron versions are often used as the first in a series of filters, including as the primary filter in UV kits.
  • They have a large surface area to accommodate high flows with a low pressure drop.
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
