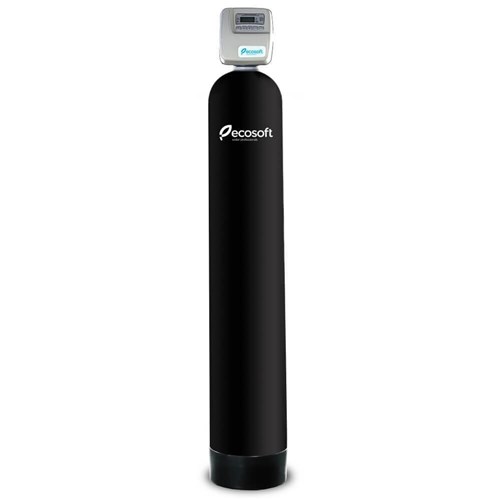

Ecosoft 1252 Upflow Neutralising Filter

Code: 807753

Print
Product Code
ECO-FNU1252
Find Your Nearest Store
Technical Specifications
Series FNU Series
Description

FNU Series neutralising filter in 1252 size is usually used for pH correction in domestic or light commercial environments


Benefits of pH corrected water
  • Pipes and chattels are protected from damage due to corrosion
  • Reduced risk of consuming undesirable metal contaminants
  • Uses a naturally occurring mineral
  • No need for chemical intervention
  • Calcite is unlikely to overcorrect
  • Effective in pH range 6.0-6.9
System Specifications FNU-1252CT
Nominal Flow Rate24-35lpm
Media Quantity (Gravel)15kg
Media Quantity (Calcite)81.8kg
Pressure Drop in Service Mode0.5-1.0bar
Inlet/Outlet Size1” NPT
System Dimensions (width x height)152 x 31cm
Features
FNA Series Neutralising Filters

Neutralising filters are designed specifically to increase pH and prevent corrosion while also increasing beneficial minerals like calcium.

FNA series neutralising filters  include a fully automated backwash to ensure that your unit does not become blocked with sediment or suffer media clumping or packing. When paired with a bypass, these units are capable of maintaining your pH within the recommended levels, protecting your pipework and water using appliances. These units contain Calcite, a natural calcium carbonate based media which slowly dissolves into water increasing pH, this media does need to be periodically replenished as the calcite is depleted.

These units are suitable for domestic and light commercial use. Larger units are also available on request.


Operating Specs
Water Temperature4-30°C
Operating Pressure2-6bar
Recommended Pre-Filter Rating100 micron
Operating EnvironmentIndoor or Outdoor with additional cover
Bypass RequiredYes
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
