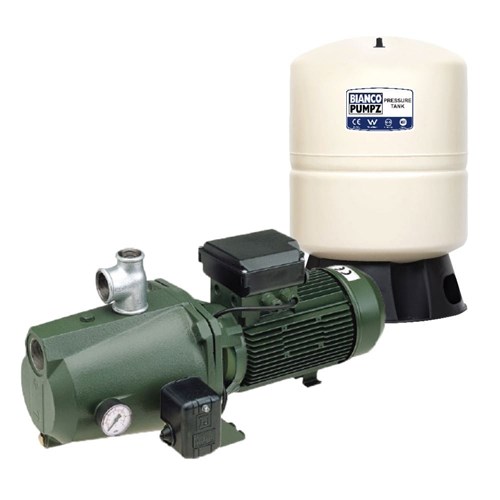

DAB-200MP/50V - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 41M 1.47KW 240V + 50L TANK

Code: 711565

Print
Product Code
DAB-200MP-50V
Find Your Nearest Store
Product Documents
Technical Specifications
Brand DAB Pumps
Bar 4.1
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175
Hp 2
Kilo Watts 1.47
Head Range Category b. 40 - 59 m
Max Head (m) 41
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1-1/4" BSPF outlet
Powered Electric
Taps 17
Volts 240
Warranty (months) 24
Watts 1470
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 60L
  • Nominal Draw-off: 18L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 390 mm
  • Height: 592mm
  • Net Weight: 9.4Kg
  • System Connection: GI
  • Colour: Almond
Downloads
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
702210
DABSR00005203
BOLT JET200M-N.1
702212
DABSR00005206
CAPACITOR DP151M-N.3
702308
DABSR00005428
DISCHARGE PLUG DP100M-N.3
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702213
DABSR00005207
IMPELLER KIT JET200M-N.1
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702216
DABSR00005210
MECHANICAL SEAL
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702209
DABSR00005202
O RING JET200M-N.1
702220
DABSR00005221
PUMP BODY JET200M-N.1
702208
DABSR00005200
SUPPORT JET200M-N.1
702217
DABSR00005211
TERMINAL BOARD JET151M-N.3
702218
DABSR00005212
VENTURI JET200M-N.1
