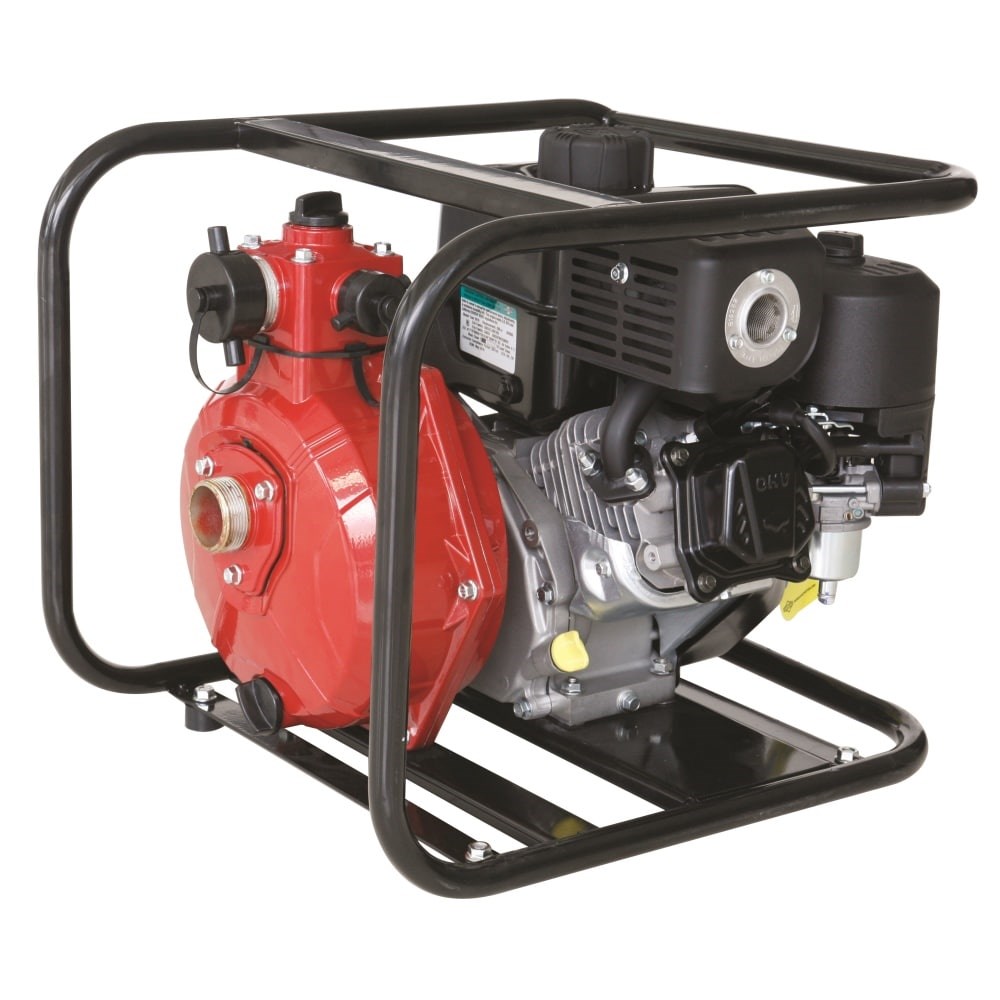

BIA-HP15ABS - Bianco Vulcan 6.5HP Engine Driven Fire Pump -Powered by Briggs & Stratton

Code: 804452

Print
Product Code
BIA-HP15ABS
Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Fire Fighting
Fuel Petrol
Hp 6.5
Max Flow (L/min) 330
Max Head (m) 55
Port Size Outlet 1 x 1-1/2" + 2 x 1"BSPM
Warranty (months) 36
Description

The Bianco Vulcan 6.5HP petrol powered fire pump is using the next generation motor powered by Briggs & Stratton. This portable engine driven pump is ideal for fire prevention of properties and farms where power is not available. As bush fires can spread quickly in our hot climates, a quick start engine that has a “Quick Start Promise” is what you need to prepare your property.

High pressure portable pumps are also ideal for farm crop spraying or water transfer. When you have a heavy pump on the back of your work ute, you want your pump to have a strong sturdy roll frame and a heavy duty fuel cap so you don’t end up with petrol split over your vehicle.

Supported by a strong network of Briggs & Stratton 400+ Service Agent Network across Australia PLUS White Internationals pump service agents, you will find support close by. The Bianco Vulcan range can be order through any of White International’s 1,500 + network of dealers across Australia.

For water transfer of large volumes of water where high pressures are not required, check out the Bianco Vulcan Tanker & Gusher pumps listed below.

Features

6.5HP Fire Pump

  • Custom Built Frame
  • Single cylinder, 4 stroke, forced air cooled, OHV engine
  • Heads to 55 metres
  • Flows to 330 l/min
  • Suction to 6m/120s
  • 1 x 1.5” 2 x 1” BSP male discharge ports
  • 1 x 1.5” BSP male suction port
  • Rubber mounting feet
  • Low Oil Level Engine Protection
  • Low Oil Sensor
  • Full Serviceability
  • Heavy Duty Fuel Cap

Applications

  • Fire Fighting
  • Water Transfer
  • Tank Filling
  • Crop Spraying & Irrigation
Roll Frame
Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing.
Rubber Mounting Feet
Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation.
Suction Port
1 x 1½” bsp male Suction Port
Discharge Port
1 x 1½”, 2 x 1” male Discharge Port for ease of connection to multiple hose sizes.
Spark Arrestor
Pre fitted spark arrestor with directional deflector designed to prevent rogue sparks from igniting the surrounding area when in use.
Low Oil Protection
Each engine has been pre fitted with a Low oil level sensor to prevent running the engine dry of oil.

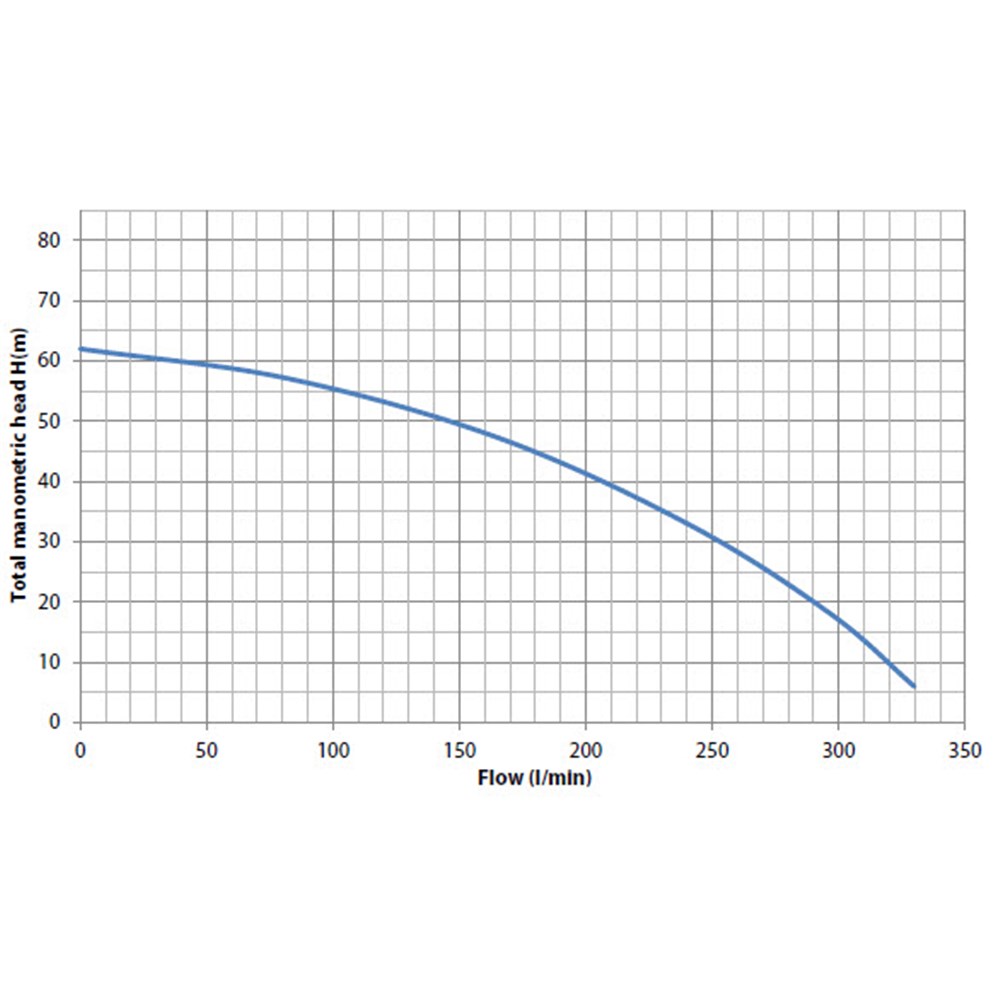

Performance

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Powered by the Next Generation of Briggs & Stratton

Built from the ground up in combination with Briggs and Stratton the range has exceeded all expectations offering the best in high performance and reliability whilst remaining a value product with a full national 3 year engine and pump warranty serviced by both Briggs and Stratton and White International dealer networks.

A complete customised engine solution built by Briggs and Stratton takes advances in small engine design sourced from their global network to ensure the engine provides a complete easy start, easy use and reliable long term solution for approved pumps within the Vulcan range. This combined with a complete redesign of the pump end guarantees the best solution possible for any user where water is required and a small engine pump is the solution of choice.

  • Next Generation Engine & Pump Design
  • 800 Hour High Performance Engine
  • Lo-toneā„¢ Muffler for reduced noise
  • Low emissions to recognised global standards
  • Full national engine support across 400+ Briggs & Stratton service centres
Quick Start Promise

The next Generation of Bianco Pumpz Engine Driven Range is Powered by a Briggs & Stratton Engine that comes with our Quick Start Promise. From extensive development of the engine design, this pump will start simply by any user.
