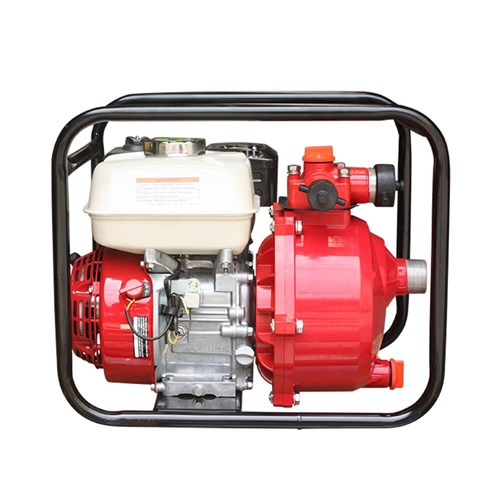

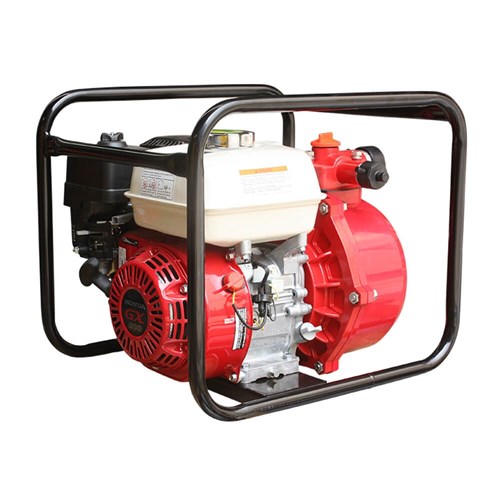

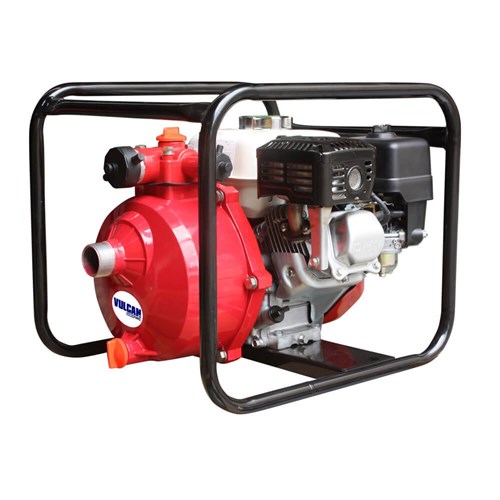

BIA-MH215SHP - Bianco Vulcan Engine Driven Fire Pump - Powered by Honda GX200

Code: 809994

Print
Product Code
HONDA SINGLE IMPELLER
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 5.8
Max Flow (L/min) 570
Max Head (m) 74.5
Port Size Outlet 1 x 1-1/2" + 2 x 1"BSPM
Warranty (months) 24
Description
Bianco Vulcan HONDA GX200 Fire Fighting Pump

Max head 74.5m, max flow 570L/m, (GX200 Motor)
Features
  • Reliable HONDA GX200 Fire Fighting Pump
  • Single Impeller & Self Priming
  • 3.1L Fuel Tank Capacity
  • Fuel Type: Unleaded Petrol
  • High Performance Pump
  • Manufactured in Australia Using High Quality Parts
  • Applications: Fire Fighting, Water Transfer, Tank Filling & Crop Spraying
  • 2 Year Pump Parts and Labour Warranty

Honda GX200

Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

  • FUEL EFFICIENT, HIGH OUTPUT OPERATION
  • SMOOTH PERFORMANCE
  • EXCEPTIONALLY QUIET
  • PROVEN RELIABILITY
  • EASY TO USE AND MAINTAIN
  • EASY STARTING
  • EMISSIONS COMPLIANT
GX200
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 54 mm
Displacement 196 cm3
Net Power Output* 5.8 hp (4.3 kW) @ 3,600 rpm
Net Torque 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
Oil Capacity 0.6L
Fuel Tank Capacity 3.1 Liters
Fuel Unleaded 86 octane or higher
Dry Weight 35 lbs. (16.1 kg)
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
